Description

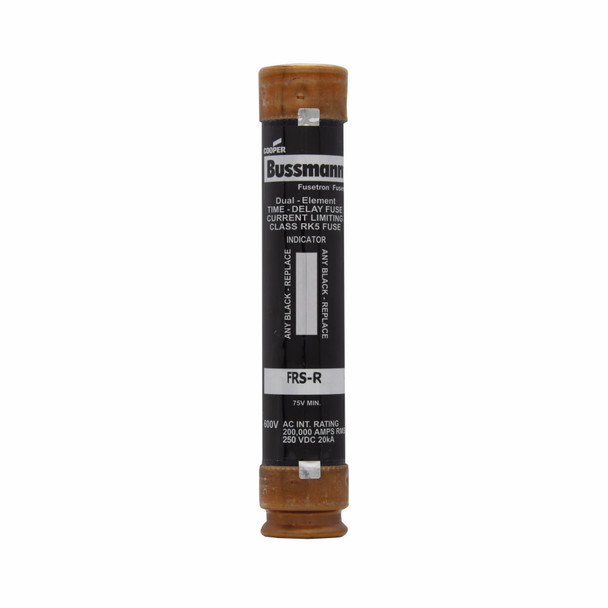

Bussmann FRS-R-40ID
Bussmann Fusetron Fuse, Current Limiting Time Delay, Series: FRS-R, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Rejection, 40 A, 600 VAC/250 VDC, 200/20 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 1.06 in Dia x 5.5 in L Body Size
Additional Description: BUSS-FRS-R-40ID FUSETRON DUAL-ELEMENT CLASS RK5 INDICATI
Catalog Description: Eaton Bussmann series FRS-R fuse, 40 A, Dual, Class RK5, With Indicator, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC at 600 V,20 kAIC at 250 Vdc, Standard, 600 V, 250 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 40 A |
| Body Type | Cylindrical |
| Class | RK5 |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 200/20 kAIC |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 s at 500% |
| Series | FRS-R |
| Terminal Type | Ferrule End |
| Type | Current Limiting Time Delay |
| Voltage Rating | 600 VAC/250 VDC |
