Description

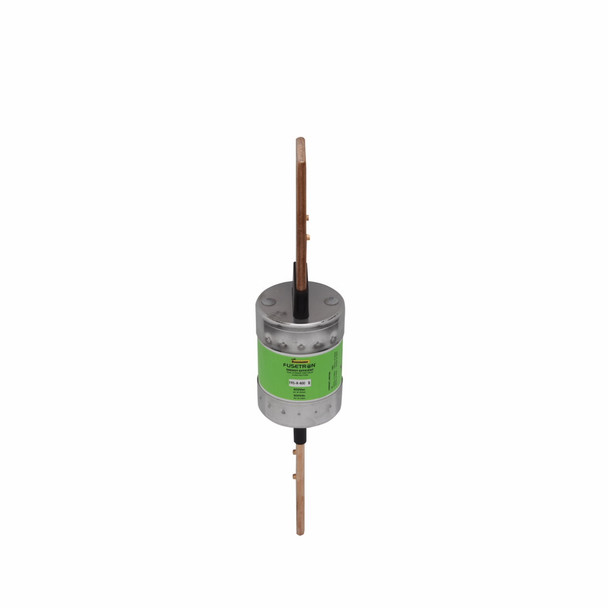

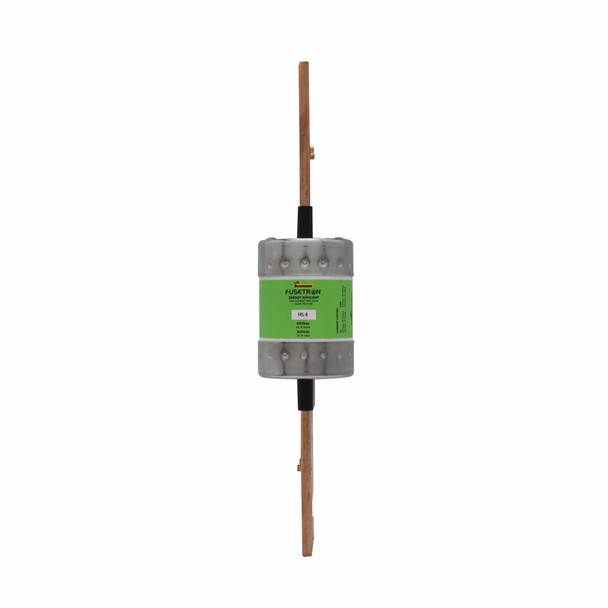

Bussmann FRS-R-250 Time Delay Fuse
Bussmann Fusetron Time Delay Fuse, Current Limiting Renewable, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 250 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 2.34 in Dia x 11.63 in L Body Size
Additional Description: BUSS-FRS-R-250 FUSETRON DUAL ELEMENT FUSE CLASS RK5 ELEMEN
Catalog Description: Eaton Bussmann series FRS-R fuse, 250 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC at 600 V,20 kAIC at 300 Vdc, Standard, 600 V, 300 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 250 |
| Amperage Rating | 250 A |
| Body Type | Cartridge |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 20/200 kA |
| Interrupt Rating | 200/20 |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | FRS-R |
| Terminal Type | Blade |
| Terminal Type | Knife Blade |
| Type | Current Limiting Renewable |
| Voltage Rating | 600 VAC/300 VDC |
