Description

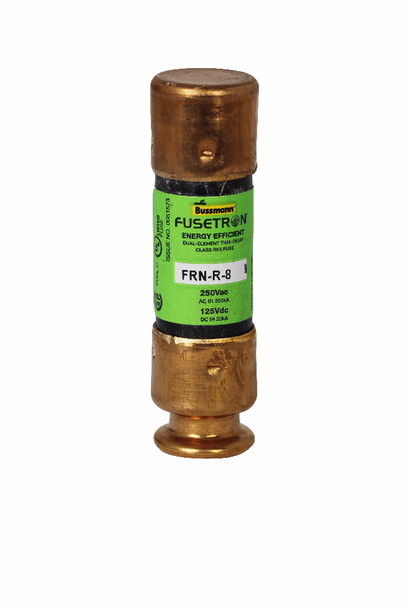

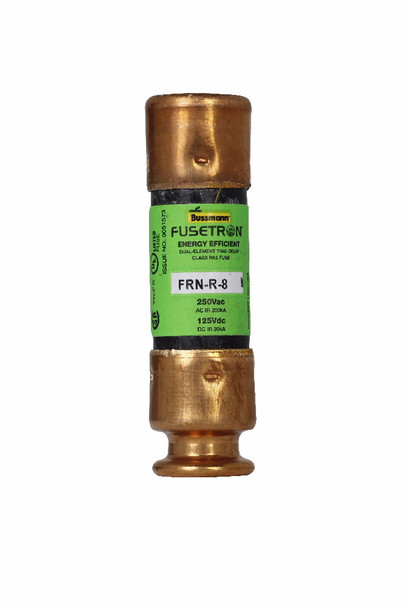

Bussmann FRN-R-8 Time Delay Fuse
Bussmann Fusetron Time Delay Fuse, Current Limiting, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 8 A, 250 VAC/125 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size
Additional Description: BUSS-FRN-R-8 FUSETRON DUAL-ELEMENT CLASS RK5 DUAL-ELEMENT
Catalog Description: Fuse-link, LV, 8 A, AC 250 V, 14 x 51 mm, RK5, UL, time-delay, dual-element
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 8 |
| Amperage Rating | 8 A |
| Body Type | Cylindrical |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 20/200 kA |
| Interrupt Rating | 200/20 |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | FRN-R |
| Terminal Type | Ferrule |
| Type | Current Limiting |
| Voltage Rating | 250 VAC/125 VDC |
