Description

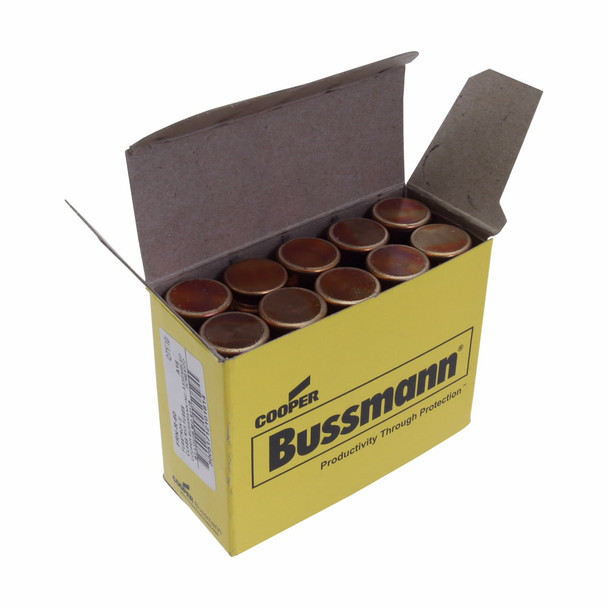

Bussmann FRN-R-60 Time Delay Fuse
Bussmann Fusetron Time Delay Fuse, Current Limiting Energy Efficient, Series: FRN-R, Non-Indicating, Rejection, 60 A, 250 VAC/125 VDC, 200/20 kA Interrupt, Class: RK5, 10 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Dual Element, Fiberglass, 0.81 in Dia x 3 in L Body
Additional Description: BUSS-FRN-R-60 FUSETRON DUAL-ELEMENT CLASS RK5 DUAL-ELEMENT
Catalog Description: Eaton Bussmann series FRN-R fuse, 60 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC at 250 V,20 kAIC at 125 Vdc, Standard, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 60 A |
| Body Type | Cylindrical |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200/20 |
| Interrupt Rating | 200/20 kA |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 |
| Response Time | 10 s |
| Series | FRN-R |
| Terminal Type | Ferrule |
| Type | Current Limiting Energy Efficient |
| Voltage Rating | 250 VAC/125 VDC |
