Description

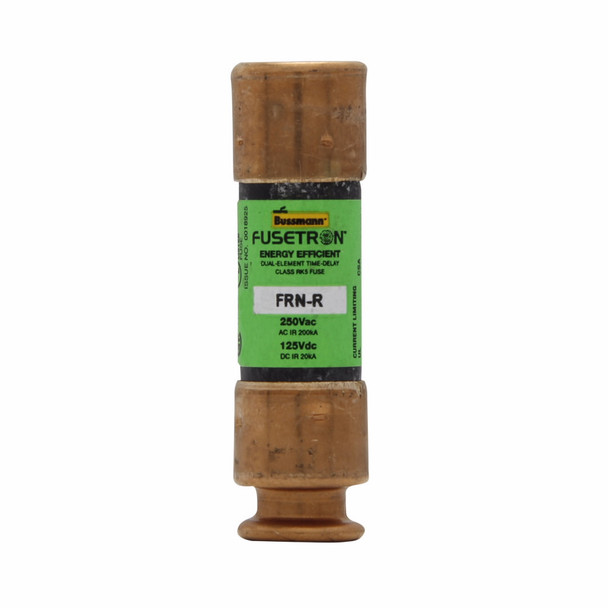

Bussmann FRN-R-5-6/10 Time Delay Fuse
Bussmann Fusetron Fuse, Current Limiting Time Delay, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 5.6 A, 250 VAC/125 VDC, 200/20 kAIC Interrupt, Class: RK5, 8 s at 500% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size
Additional Description: BUSS-FRN-R-5-6/10 FUSETRON DUAL-ELEMENT CLASS RK5
Catalog Description: Eaton Bussmann series FRN-R fuse, 5.6 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 8 sec at 500%, 200 kAIC at 250 V,20 kAIC at 125 Vdc, Standard, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 5.6 |
| Amperage Rating | 5.6 A |
| Amperage Rating | 5-6/10 |
| Body Type | Cylindrical |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200/20 |
| Interrupt Rating | 200/20 kAIC |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 8 |
| Response Time | 8 s at 500% |
| Series | FRN-R |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Voltage Rating | 250 VAC/125 VDC |
