Description

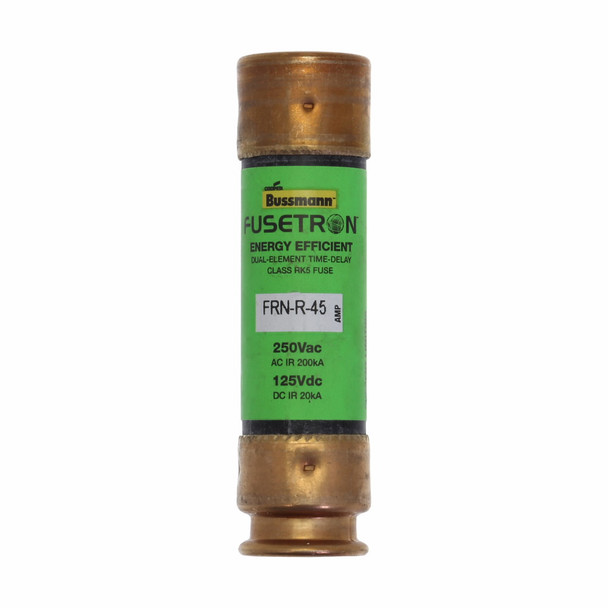

Bussmann FRN-R-45 Time Delay Fuse
Bussmann Fusetron Time Delay Fuse, Current Limiting Energy Efficient, Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection, 45, Voltage Rating A, 200/20 Interrupt, Class kA, Frequency Rating, 10 Response, Terminal Type s, Holder Mount, Body Type, Dual Element, Material, Body Size
Additional Description: BUSS-FRN-R-45 FUSETRON DUAL-ELEMENT CLASS RK5
Catalog Description: Eaton Bussmann series FRN-R fuse, 45 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC at 250 V,20 kAIC at 125 Vdc, Standard, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 45 |
| Amperage Rating | 45 A |
| Body Type | Cylindrical |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200/20 |
| Interrupt Rating | 200/20 kA |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 |
| Response Time | 10 s |
| Series | FRN-R |
| Terminal Type | Ferrule |
| Type | Current Limiting Energy Efficient |
| Voltage Rating | 250 VAC/125 VDC |
