Description

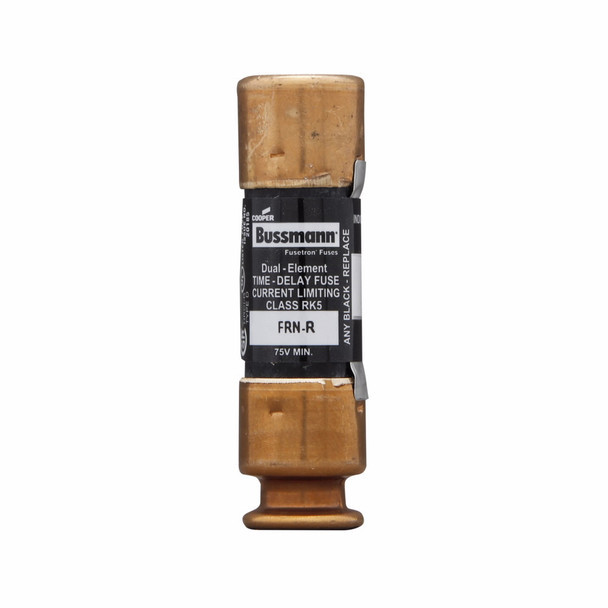

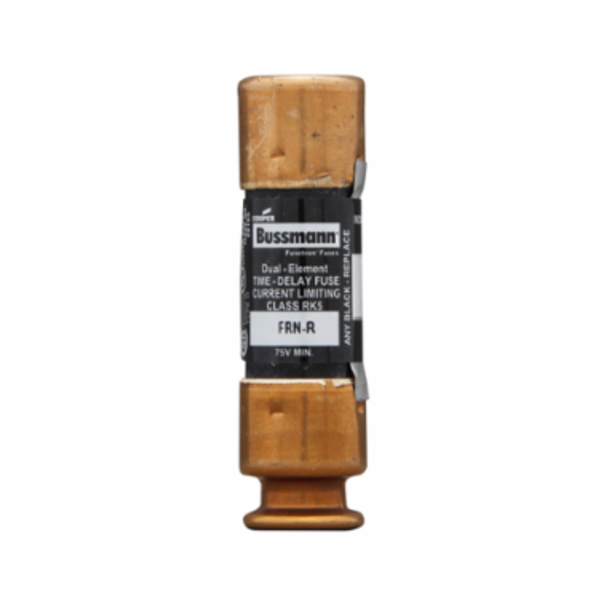

Bussmann FRN-R-12ID Cartridge Fuse
Bussmann Fusetron Fuse, Current Limiting Time Delay, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 12 A, 250 VAC/125 VDC, 200/20 kAIC Interrupt, Class: RK5, 8 s at 500% Response, Holder Mount, Dual Element, Fiberglass
Additional Description: BUSS-FRN-R-12ID FUSETRON DUAL-ELEMENT CLASS RK5 INDICATI
Catalog Description: Eaton Bussmann series FRN-R fuse, 12 A, Dual, Class RK5, With Indicator, 8 sec at 500%, 20 kAIC at 125 Vdc,200 kAIC at 250 V, Standard, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 12 |
| Amperage Rating | 12 A |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200/20 kAIC |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 8 s at 500% |
| Response Time | 8 sec at 500% |
| Series | FRN-R |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC/125 VDC |
