Description

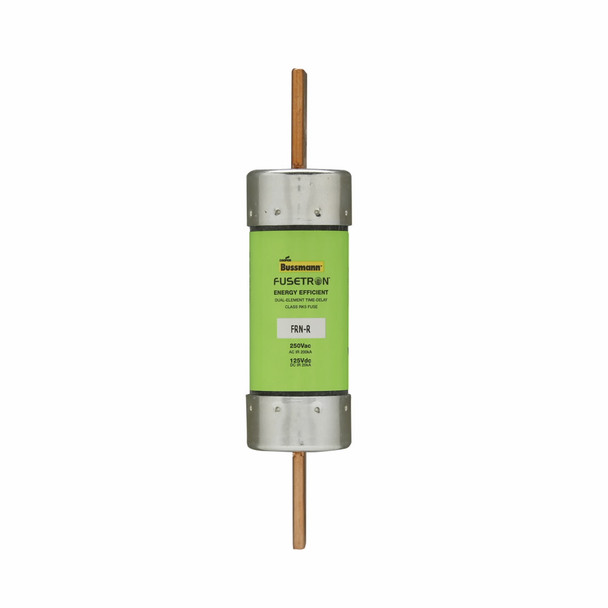

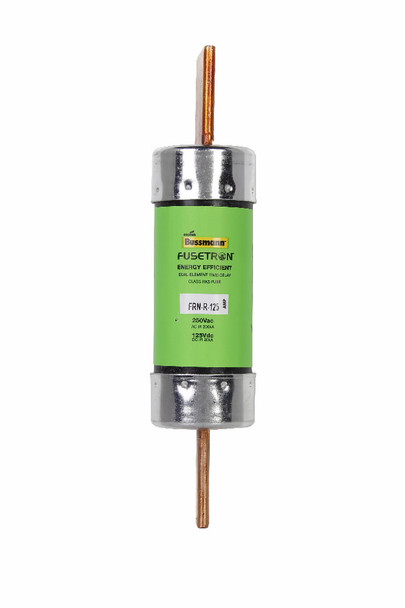

Bussmann FRN-R-125 Time Delay Fuse
Bussmann Fusetron Time Delay Fuse, Current Limiting, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 125 A, 250 VAC/125 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 1.56 in Dia x 7.13 in L Body Size
Additional Description: BUSS-FRN-R-125 FUSETRON DUAL-ELEMENT CLASS RK5
Catalog Description: Eaton Bussmann series FRN-R fuse, 125 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 20 kAIC at 125 Vdc,200 kAIC at 250 V, Standard, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 125 A |
| Body Type | Cartridge |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 20/200 |
| Interrupt Rating | 20/200 kA |
| Interrupt Rating | 200/20 |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | FRN-R |
| Terminal Type | Blade |
| Terminal Type | Knife Blade |
| Type | Current Limiting |
| Voltage Rating | 250 VAC/125 VDC |
