Description

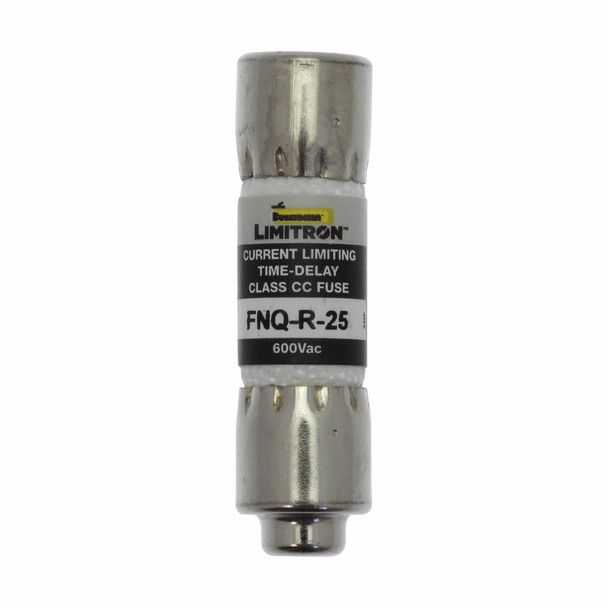

Bussmann FNQ-R-25 Time Delay Fuse
Bussmann CC-Tron Fuse, Current Limiting Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 25 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNQ-R-25 CLASS CC TIME DELAY REJECTION FUSE DELAY
Catalog Description: Eaton Bussmann series FNQ-R fuse, 25 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Specifications
UNSPSC | 39121606 |
---|---|
Amperage Rating | 25 |
Amperage Rating | 25 A |
Body Type | Cylindrical |
Class | CC |
Indicating/Non-Indicating | Non-Indicating |
Interrupt Rating | 200 |
Interrupt Rating | 200 kAIC |
Material | Melamine |
Material | Melamine Tube |
Mounting type | Holder |
Rejection/Non-Rejection | Rejection |
Response Time | 12 |
Response Time | 12 s at 200% |
Series | FNQ-R |
Terminal Type | Ferrule |
Terminal Type | Ferrule End |
Type | Current Limiting Time Delay |
Voltage Rating | 600 |
Voltage Rating | 600 V |
