Description

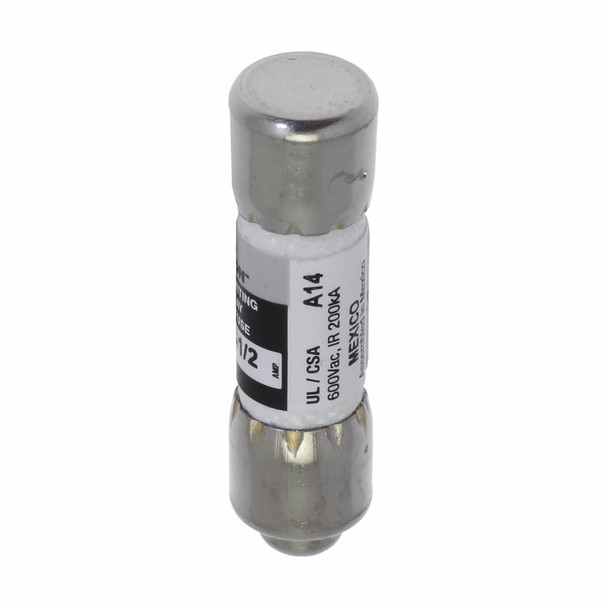

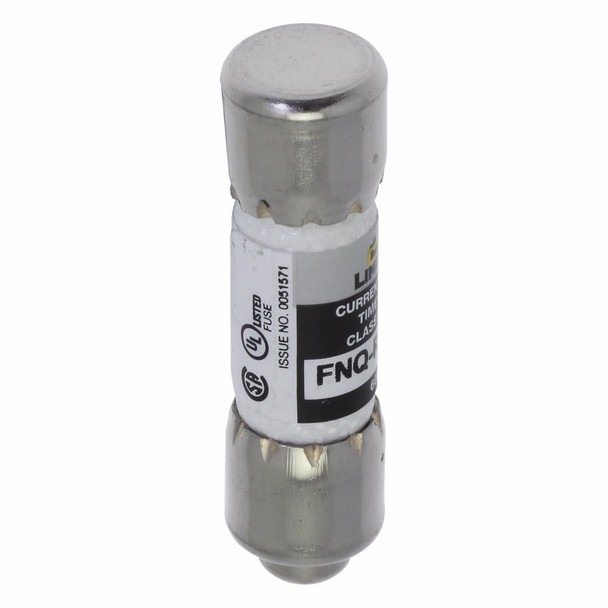

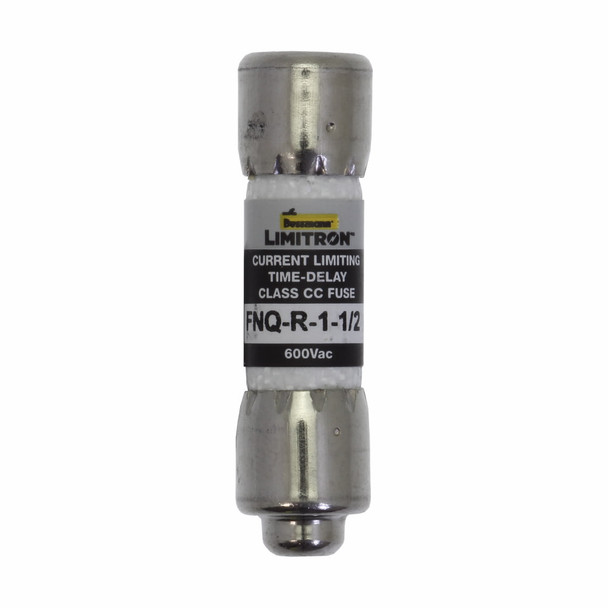

Bussmann FNQ-R-1-1/2 Time Delay Fuse
Bussmann CC-Tron Time Delay Fuse, Current Limiting High Inrush, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1.5 A, 600 VAC, 200 kA Interrupt, Class: cc, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNQ-R-1-1/2 CLASS CC TIME DELAY
Catalog Description: Eaton Bussmann series FNQ-R fuse, 1.5 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 1.5 A |
| Amperage Rating | 1-1/2 |
| Body Type | Cylindrical |
| Class | CC |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 12 |
| Response Time | 12 s at 200% |
| Series | FNQ-R |
| Terminal Type | Ferrule |
| Type | Current Limiting High Inrush |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
