Description

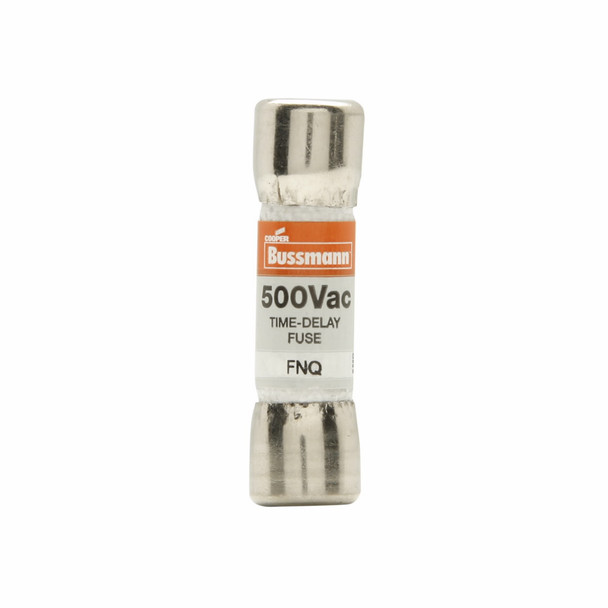

Bussmann FNQ-1-6/10 Midget Fuse
Bussmann Tron Fuse, Time Delay, Series: FNQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1.6 A, 500 VAC, 10 kAIC Interrupt, Class: Supplemental, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Nickel Plated Bronze, Orange, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNQ-1-6/10 BUSS MIDGET FUSE
Catalog Description: Eaton Bussmann series FNQ fuse, Time-delay, Motor control transformers, Circuits with in-rush currents, 1.6 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 500 Vac, Nickel-plated bronze endcap, Standard, 500 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 1.6 |
| Amperage Rating | 1.6 A |
| Amperage Rating | 1-6/10 |
| Body Type | Cartridge |
| Class | CC/Supplemental |
| Class | Supplemental |
| Color | Orange |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 |
| Interrupt Rating | 10 kAIC |
| Material | Fiber Tube |
| Material | Nickel Plated Bronze |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FNQ |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Time Delay |
| Voltage Rating | 500 |
| Voltage Rating | 500 VAC |
