Description

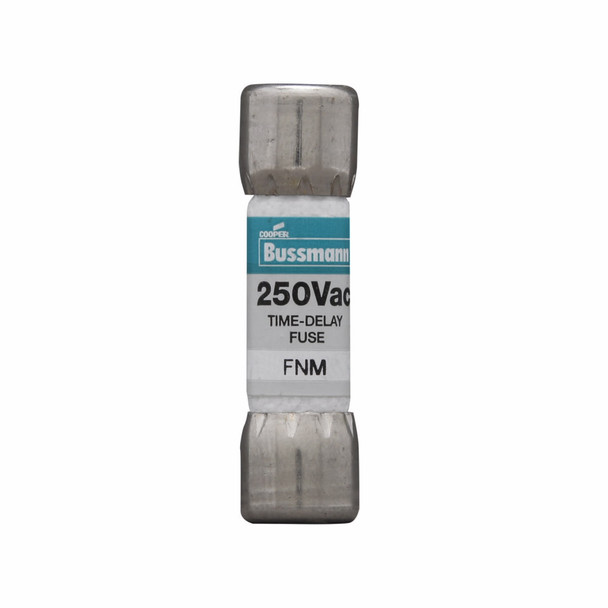

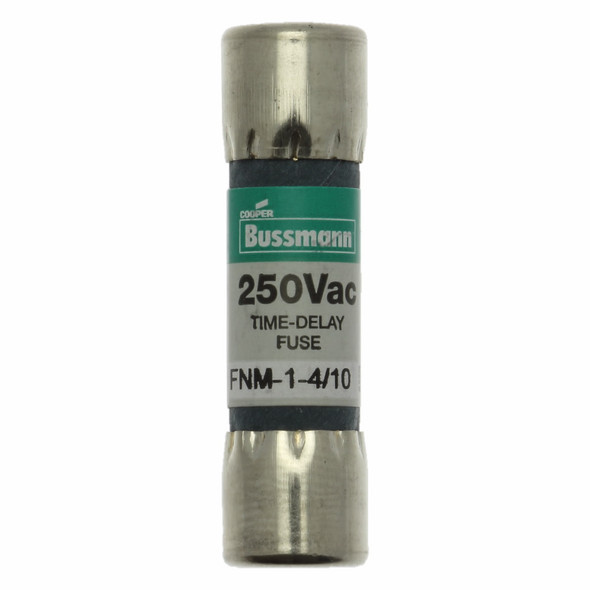

Bussmann FNM-1-8/10 Midget Fuse
Bussmann Fusetron Midget Fuse, Time Delay, Series: FNM, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1.8 A, 250 VAC, 100 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Bronze/Fiberglass, Green, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNM-1-8/10 BUSS MIDGET FUSE
Catalog Description: Eaton Bussmann series FNM fuse, Time-delay Midget fuse, 1.8 A, Dual, Non-indicating, Ferrule end x ferrule end, 100 AIC at 250 Vac,10 kAIC at 125 Vac, Nickel-plated bronze endcap, Standard, 250 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 1.8 A |
| Amperage Rating | 1-8/10 |
| Body Type | Cylindrical |
| Class | CC/Supplemental |
| Class | Supplemental |
| Color | Green |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 A |
| Interrupt Rating | 100/10000 |
| Material | Bronze/Fiberglass |
| Material | Fiber Tube |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FNM |
| Terminal Type | Ferrule |
| Type | Time Delay |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
