Description

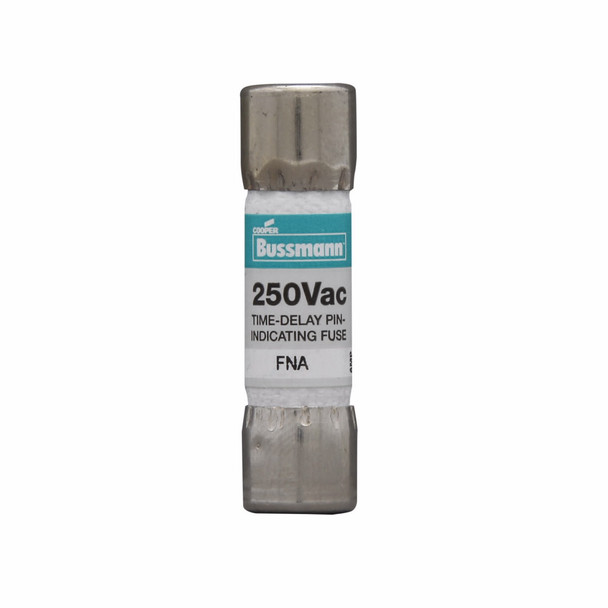

Bussmann FNA-8/10 Midget Fuse
Bussmann Midget Fuse, Pin Indicating Time Delay, Series: FNA, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Non-Rejection, 8/10 A, 250 VAC, 35 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, Green, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNA-8/10 FUSETRON DUAL-ELEMENT INDICATING
Catalog Description: Eaton Bussmann series FNA fuse, Time-delay fuse, Inductive load circuits, electronic circuits, 0.8 A, Dual, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac,35 AIC at 250 Vac, Silver-plated pin, Standard, 250 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 8/10 |
| Amperage Rating | 8/10 A |
| Body Type | Cartridge |
| Class | Supplemental |
| Color | Green |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 35 |
| Interrupt Rating | 35 A |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FNA |
| Terminal Type | Ferrule |
| Type | Pin Indicating Time Delay |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
