Description

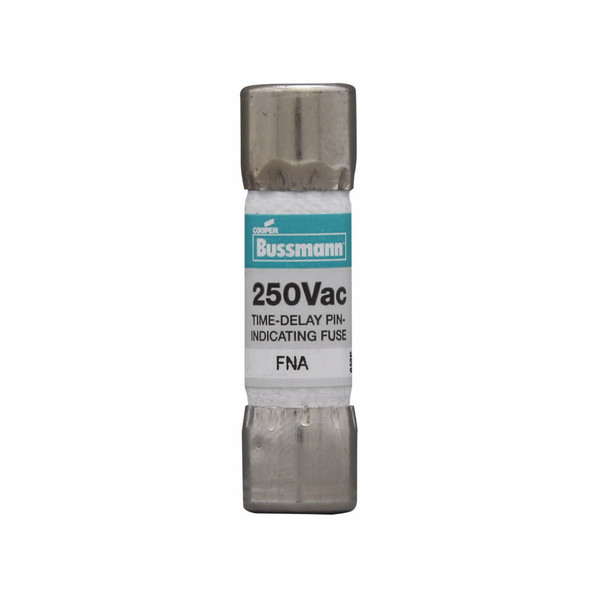

Bussmann FNA-1-1/2 Midget Fuse
Bussmann Fusetron Fuse, Midget Pin-Indicating Time Delay, Series: FNA, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Non-Rejection, 1.5 A, 125 VAC, 10 kAIC Interrupt, Class: Supplemental, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, Blue, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNA-1-1/2 FUSETRON DUAL-ELEMENT INDICATING
Catalog Description: Eaton Bussmann series FNA fuse, Time-delay fuse, Inductive load circuits, electronic circuits, 1.5 A, Dual, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 250 Vac,10 kAIC at 125 Vac, Silver-plated pin, Standard, 250 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 1.5 A |
| Body Type | Cartridge |
| Class | Supplemental |
| Color | Blue |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 10 kAIC |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FNA |
| Terminal Type | Ferrule End |
| Type | Midget Pin-Indicating Time Delay |
| Voltage Rating | 125 VAC |
