Description

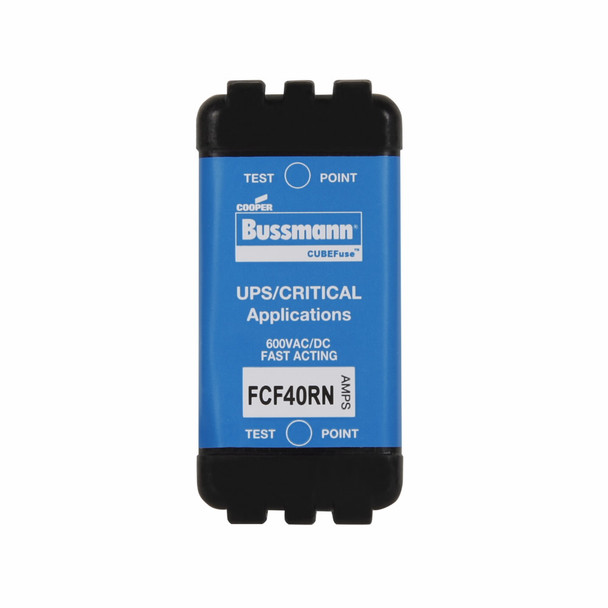

Bussmann FCF40RN Fast Acting Fuse
EATON Bussmann CUBEFuse Fuse, Fast Acting Current Limiting Finger Safe Low Voltage, Series: FCF, Indicating/Non-Indicating: Non-Indicating, 40 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, 6 min at 200% Response, Blade Terminal, Through Hole Mount, Rectangular Body Type, Glass Filled Polyethersulfone, 2.13 in L x 1 in W Body Size
Additional Description: BUSS-FCF40RN Fast Acting CUBEFuse 40A Non-indication
Catalog Description: Eaton Bussmann series FCF fuse, 40 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end,Class CF, 6 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 40 |
| Amperage Rating | 40 A |
| Body Type | Rectangular |
| Class | CF |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50/200/300 |
| Interrupt Rating | 50/300 kA |
| Material | Glass Filled Polyethersulfone |
| Mounting type | Through Hole |
| Response Time | 6 |
| Response Time | 6 min at 200% |
| Series | FCF |
| Terminal Type | Blade |
| Type | Current Limiting Finger Safe Low Voltage |
| Type | Fast Acting Current Limiting Finger Safe Low Voltage |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
