Description

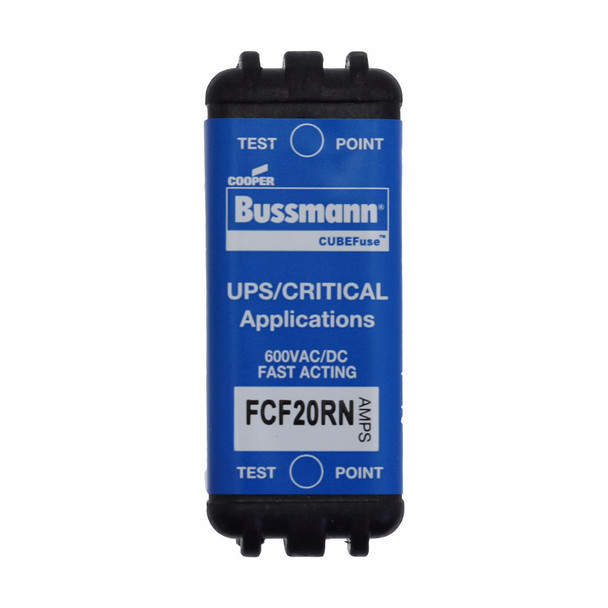

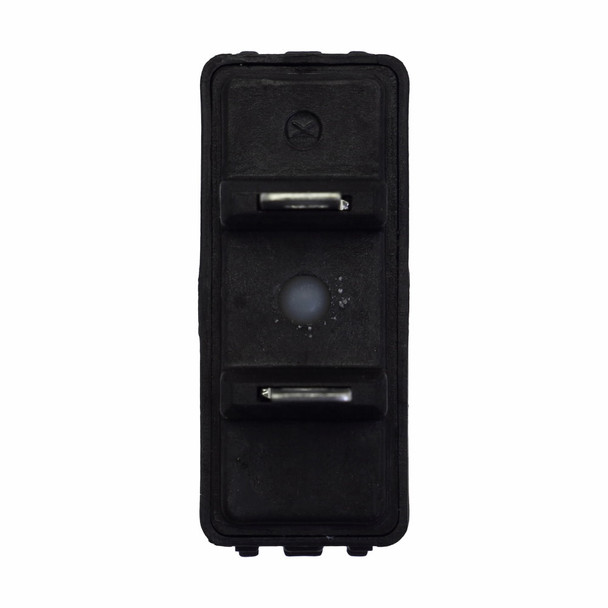

Bussmann FCF20RN Fuse
Bussmann CUBEFuse Fuse, Fast Acting Non-Indicating, Series: FCF, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, 50/60 Hz, 4 min at 200% Response, Blade Terminal, Holder Mount, Square Blade Body Type, Single Element, Glass Filled Polyethersulfone, Black, 1.88 in L x 0.75 in W Body Size
Additional Description: BUSS-FCF20RN Fast Acting CUBEFuse 20A Non-indication
Catalog Description: Eaton Bussmann series FCF fuse, 20 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end,Class CF, 4 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 20 |
| Amperage Rating | 20 A |
| Body Type | Rectangular |
| Body Type | Square Blade |
| Class | CF |
| Color | Black |
| Frequency Rating | 50/60 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50/300 kA |
| Material | Glass Filled Polyethersulfone |
| Mounting type | Holder |
| Mounting type | Hole |
| Response Time | 4 min at 200% |
| Series | FCF |
| Terminal Type | Blade |
| Type | Fast Acting Non-Indicating |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
