Description

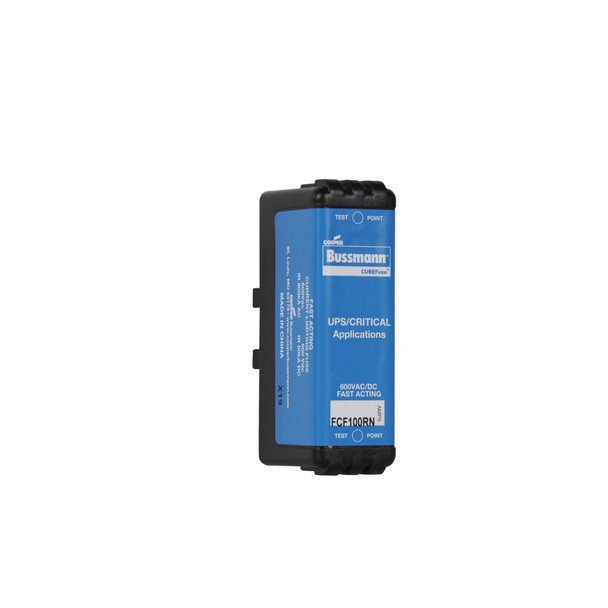

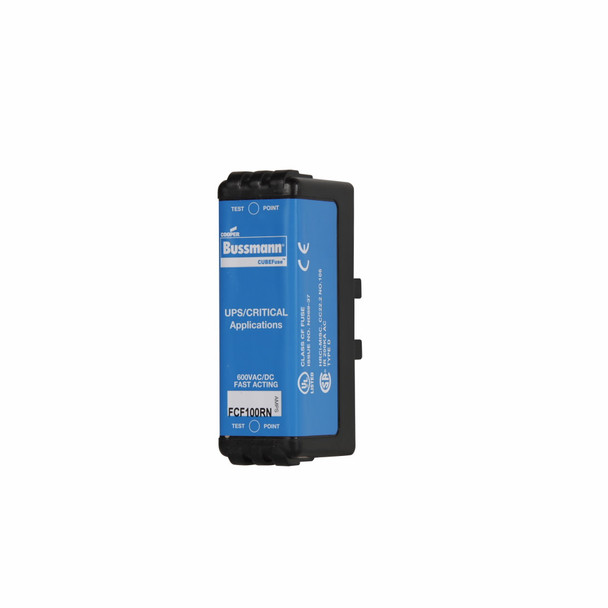

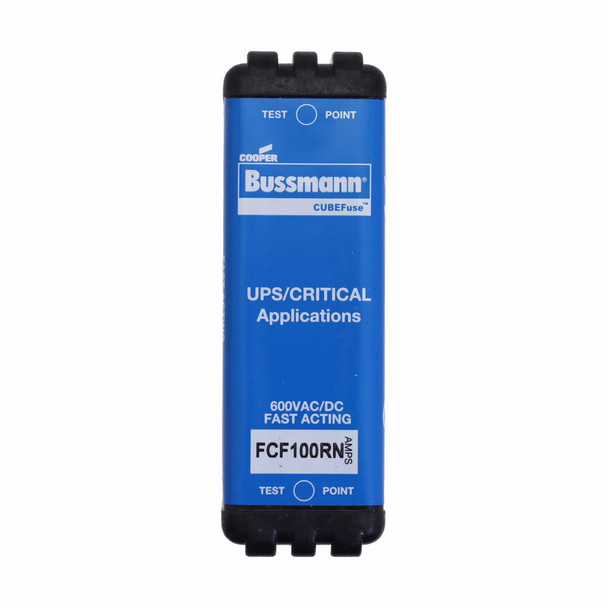

Bussmann FCF100RN Cartridge Fuse
EATON Bussmann Cartridge Fuse, Fast Acting Non-Indicating, Series: FCF, 100 A, 600 VAC, 200 kA Interrupt, Class: CF, 50/60 Hz, 8 min at 200% Response, Blade Terminal, Holder Mount, Square Blade Body Type, Single Element, Glass Filled Polyethersulfone, Black, 3.01 in L x 1 in W Body Size
Additional Description: BUSS-FCF100RN Fast Acting CUBEFuse 100A Non-indication
Catalog Description: Eaton Bussmann series FCF fuse CUBEFuse, power loss 11.50 w, Critical/UPS, 100 A, 60 Hz, 50 Hz, 1, Electroless tin plated copper alloy terminal, Blade end,Class CF, 8 min at 200%, 50 kAIC at 600 Vdc,200 kAIC at 600 V, Glass filled PES
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Body Type | Square Blade |
| Class | CF |
| Color | Black |
| Frequency Rating | 50/60 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Glass Filled Polyethersulfone |
| Material | Glass Filled Polyethersulfone Case |
| Mounting type | Holder |
| Response Time | 8 min at 200% |
| Series | FCF |
| Terminal Type | Blade |
| Type | Fast Acting |
| Type | Fast Acting Non-Indicating |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
