Description

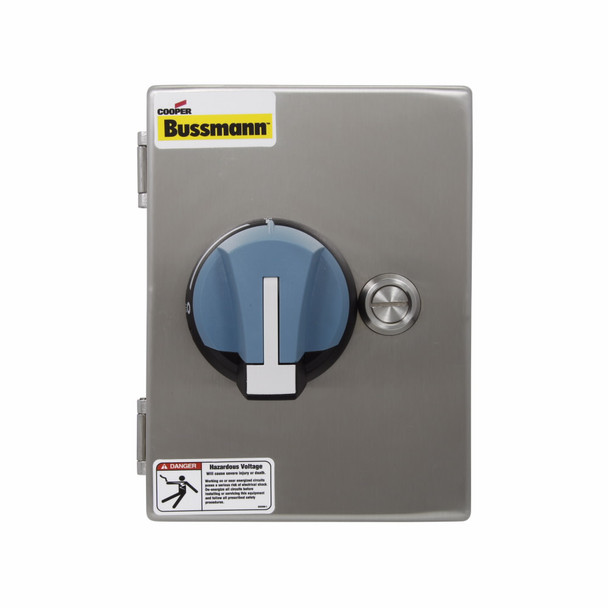

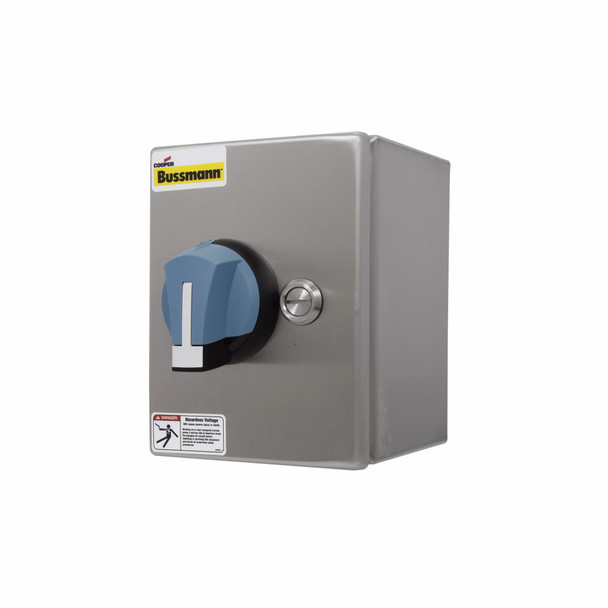

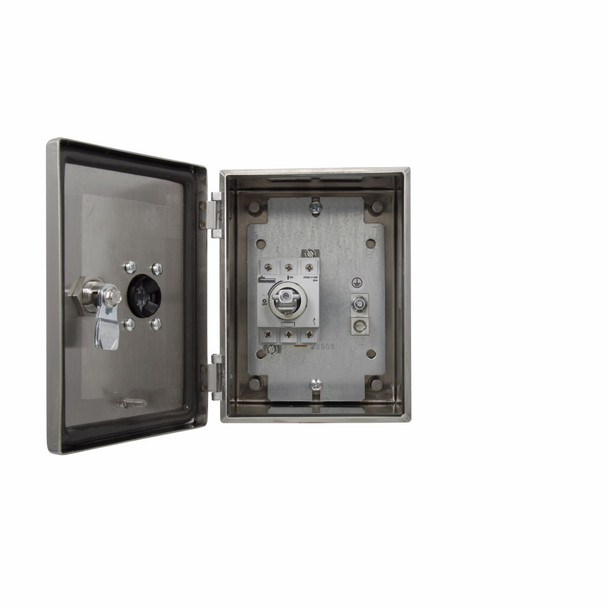

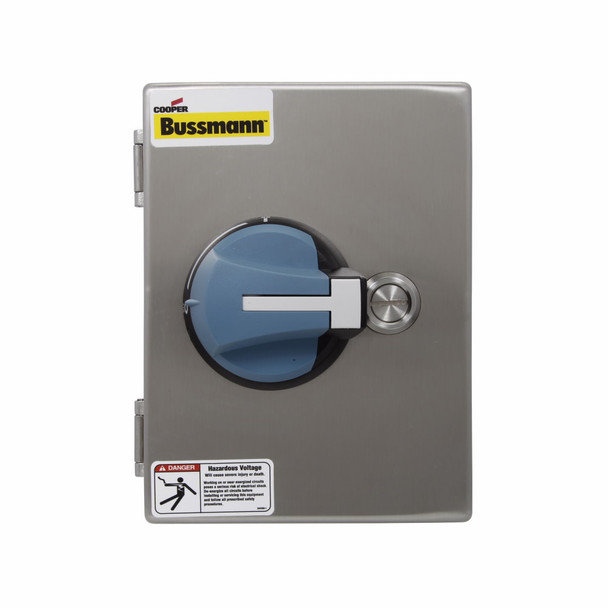

Bussmann ER4X-40N3PB Enclosed Rotary Disconnect
Bussmann Enclosed Rotary Disconnect Switch, Non-Fused, Series: ER, 600 VAC, 40 A, 25 hp, 3 Pole, 65 kA/30 A to 10 kA/60 A Short Circuit Current Rating, Black Pistol Handle Actuator, NEMA 4X, -20 to 70 deg C, 6 in W x 6 in D x 8 in H, 304 Stainless Steel
Additional Description: BUSS-ER4X-40N3PB ENCLOSED DISCONNECTS
Catalog Description: Eaton Bussmann series enclosed rotary disconnect switch, Non-fused, Pistol handle, 600V, 40A, Black, NEMA rating 4X
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Black Pistol Handle |
| Amperage Rating | 40 |
| Amperage Rating | 40 A |
| Dimensions | 6 in W x 6 in D x 8 in H |
| Enclosure Type | NEMA 4X |
| Horsepower | 25 |
| Horsepower | 25 hp |
| Material | 304 Stainless Steel |
| Number of Poles | 3 |
| Series | ER |
| Short Circuit Current Rating (kA) | 65 kA/30 A to 10 kA/60 A |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Type | Non-Fused |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
