Description
Bussmann ER4P-30N3PB

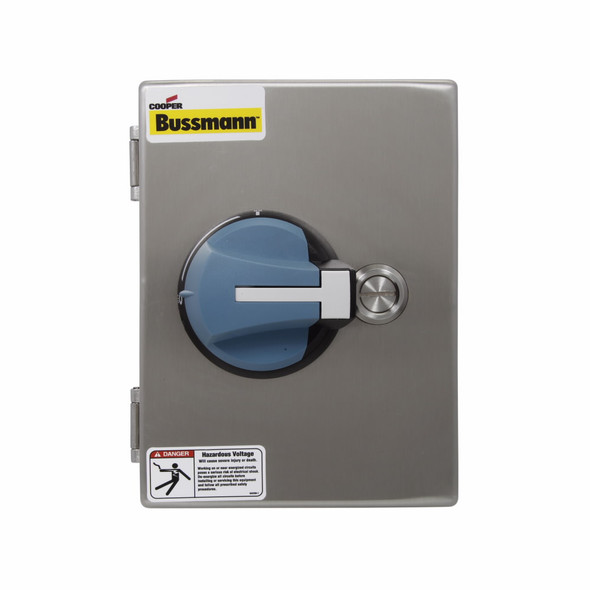

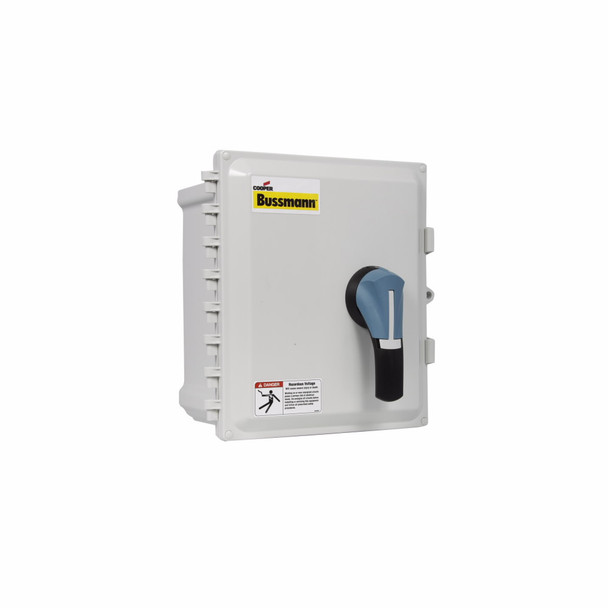

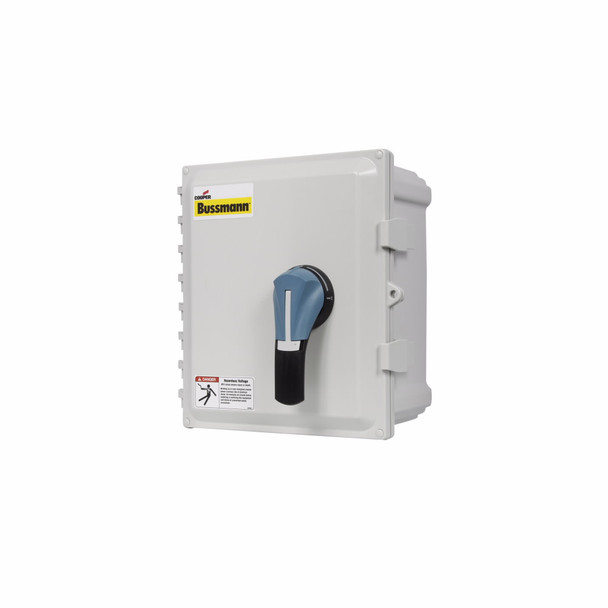

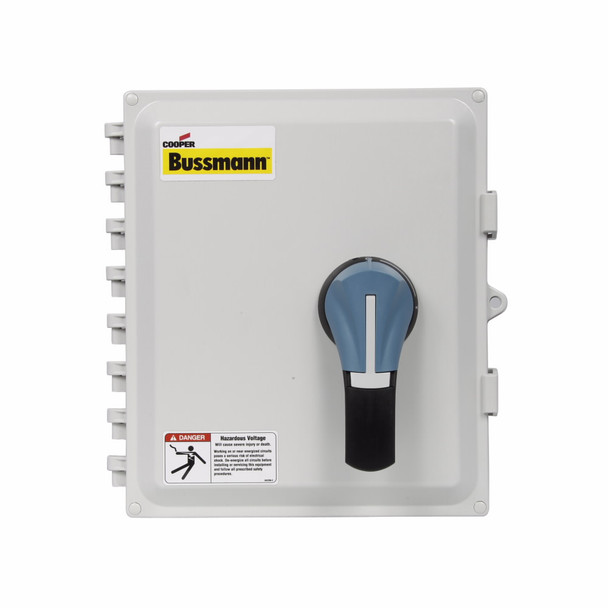

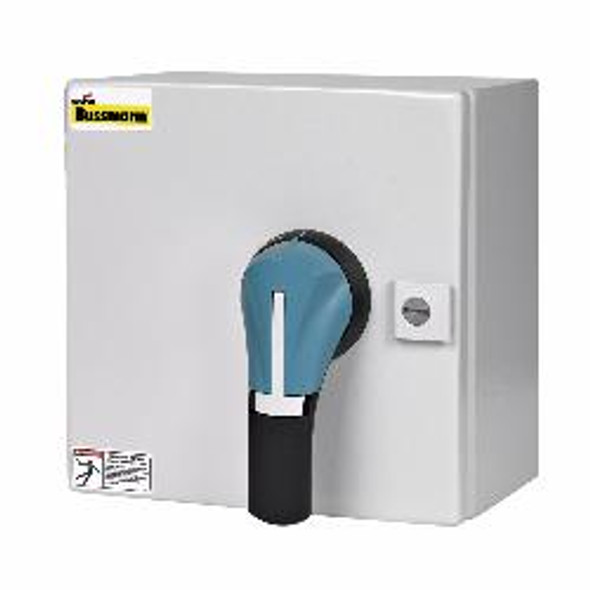

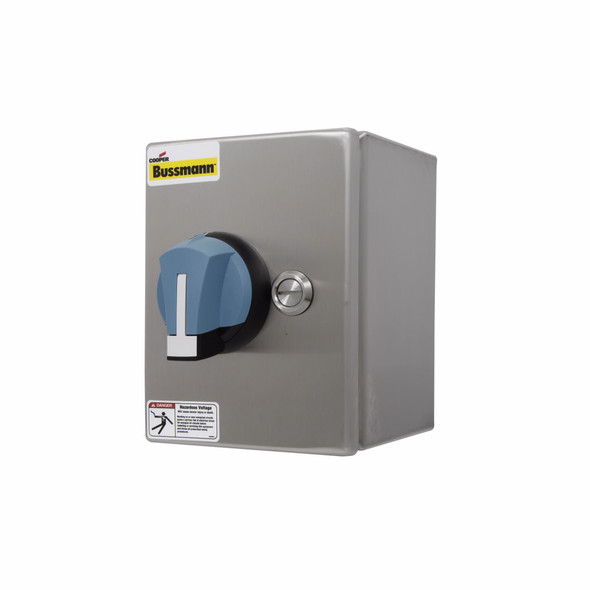

Bussmann Enclosed Rotary Disconnect Switch, Non-Fused, Series: ER, 600 VAC, 30 A, 25 hp, 3 Pole, 100 kA Short Circuit Current Rating, Black Pistol Handle Actuator, NEMA 4P, -20 to 70 deg C, 9 in W x 6 in D x 9 in H, Polycarbonate
Additional Description: BUSS-ER4P-30N3PB ENCLOSED DISCONNECTS
Catalog Description: Eaton Bussmann series enclosed rotary disconnect switch, Non-fused, Pistol handle, 600V, 30A, Black, NEMA rating 4P
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Black Pistol Handle |
| Amperage Rating | 30 A |
| Dimensions | 9 in W x 6 in D x 9 in H |
| Enclosure Type | NEMA 4P |
| Horsepower | 25 hp |
| Material | Polycarbonate |
| Number of Poles | 3 |
| Series | ER |
| Short Circuit Current Rating (kA) | 100 kA |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Type | Non-Fused |
| Voltage Rating | 600 VAC |
