Description

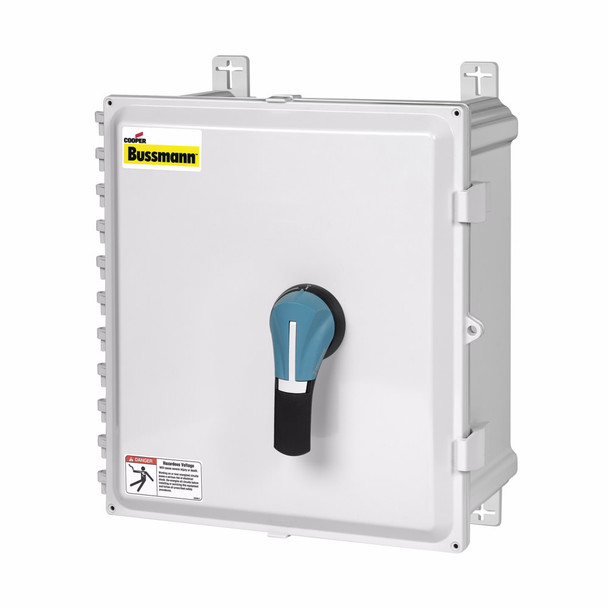

Bussmann ER1-100N3PB Enclosed Rotary Disconnect
Bussmann Enclosed Rotary Disconnect Switch, Non-Fused, Series: ER, 600 VAC, 100 A, 50 hp, 3 Pole, 100 kA at 480 VAC/25 kA at 600 VAC Short Circuit Current Rating, Black Pistol Handle Actuator, NEMA 1, -20 to 70 deg C, 10 in W x 6 in D x 12 in H
Additional Description: BUSS-ER1-100N3PB ENCLOSED DISCONNECTS
Catalog Description: Eaton Bussmann series enclosed rotary disconnect switch, Non-fused, Pistol handle, 600V, 100A, Black, NEMA rating 1
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Black Pistol Handle |
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Dimensions | 10 in W x 6 in D x 12 in H |
| Dimensions | 12 in H x 10 in W x 6 in D |
| Enclosure Type | NEMA 1 |
| Horsepower | 50 |
| Horsepower | 50 hp |
| Number of Poles | 3 |
| Series | ER |
| Short Circuit Current Rating (kA) | 100 kA at 480 VAC/25 kA at 600 VAC |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Type | Non-Fused |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
