Description

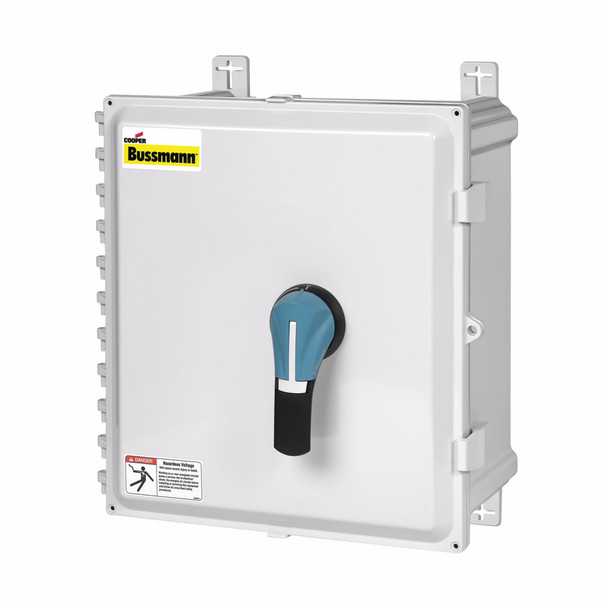

Bussmann ER1-100J3PB Enclosed Rotary Disconnect
Bussmann Enclosed Rotary Disconnect Switch, Class J Fused, Series: ER, 600 VAC/250 VDC, 100 A, 75 hp, 3 Pole, 200 kA Short Circuit Current Rating, Black Pistol Handle Actuator, NEMA 1, -20 to 70 deg C, 12 in W x 6 in D x 14 in H
Additional Description: BUSS-ER1-100J3PB ENC DISC100J NEMA1 BLK
Catalog Description: Eaton Bussmann series enclosed rotary disconnect switch, Fuse class J, Pistol handle, 600V, 100A, Black, NEMA rating 1
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Black Pistol Handle |
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Dimensions | 12 in W x 6 in D x 14 in H |
| Dimensions | 14 in H x 12 in W x 6 in D |
| Enclosure Type | NEMA 1 |
| Horsepower | 75 |
| Horsepower | 75 hp |
| Number of Poles | 3 |
| Series | ER |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Type | Class J Fused |
| Voltage Rating | 600 VAC/250 VDC |
