Description

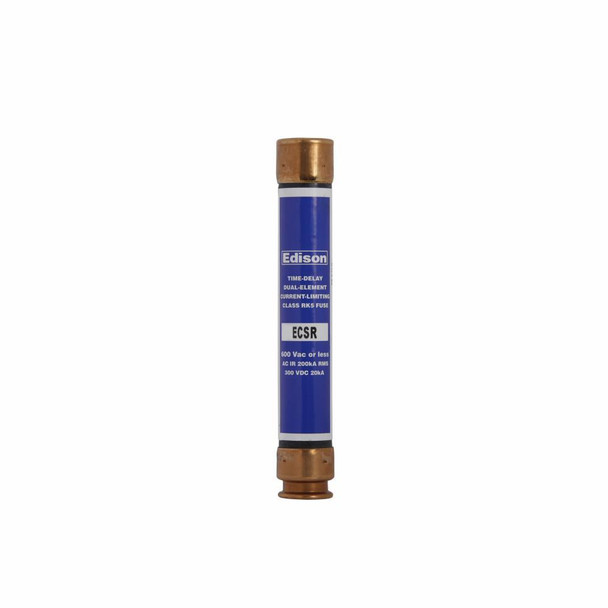

Bussmann ECSR6.25 Time-Delay Bullet Fuse
Bussmann Bullet Fuse, Current Limiting Time Delay, Series: ECSR, Indicating/Non-Indicating: Non-Indicating, 6.25 A, 600 V, 200 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Ferrule End Terminal, Dual Element, Fiberglass, 0.81 in Dia x 5 in L Body Size
Additional Description: BUSS-ECSR6.25 UL CLASS RK-5 TIME DELAY
Catalog Description: Eaton Edison ECSR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 6.25 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC, Standard, 600 V
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 6.25 |
| Amperage Rating | 6.25 A |
| Body Type | Cartridge |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kAIC |
| Material | Fiberglass |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | ECSR |
| Terminal Type | Ferrule End |
| Terminal Type | Ferrule End x Ferrule End |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Type | Current-Limiting |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
