Description

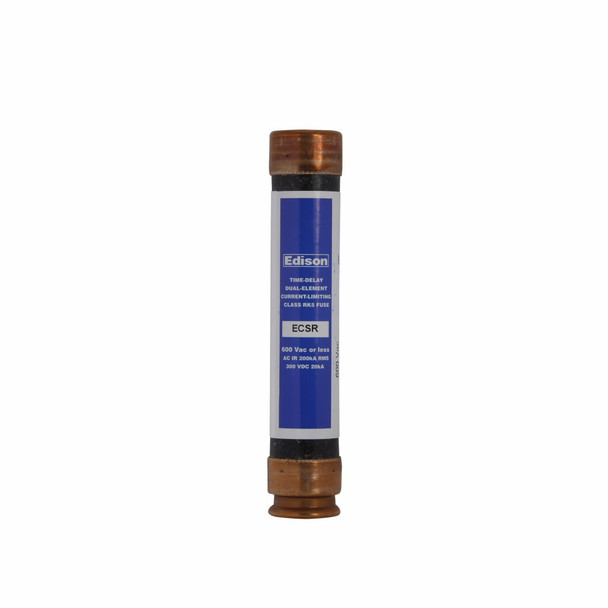

Bussmann ECSR40
Eaton Lighting Bullet™ Time Delay Fuse, Current Limiting, Series: ECSR, Non-Indicating, Rejection, 40 A, 600 VAC, 200 kA Interrupt, Class: RK5, 10 sec Response, Ferrule Terminal, Holder Mounting, Bullet Body, Dual Element, 1.06 in Dia x 5.5 in L Body
Additional Description: BUSS-ECSR40 UL CLASS RK-5 TIME DELAY
Catalog Description: Eaton Edison ECSR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 40 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC, Standard, 600 V
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 40 A |
| Body Type | Bullet |
| Body Type | Cartridge |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Interrupt Rating | 200 kAIC |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 s at 500% |
| Series | ECSR |
| Terminal Type | Ferrule End |
| Terminal Type | Ferrule End x Ferrule End |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Voltage Rating | 600 V |
| Voltage Rating | 600 VAC |
