Description

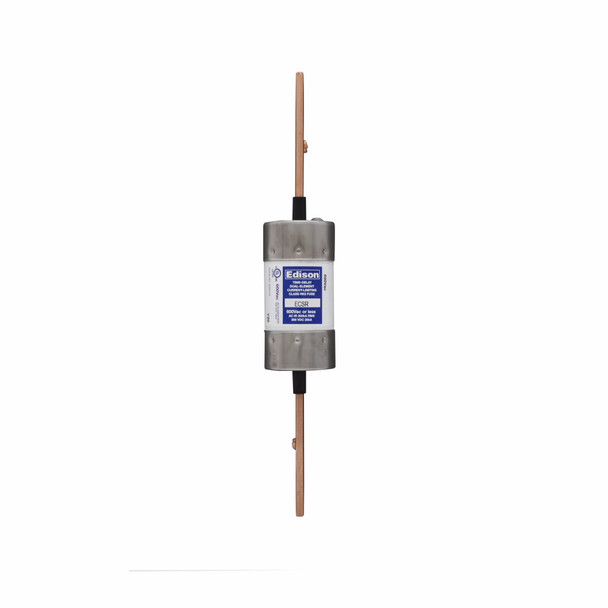

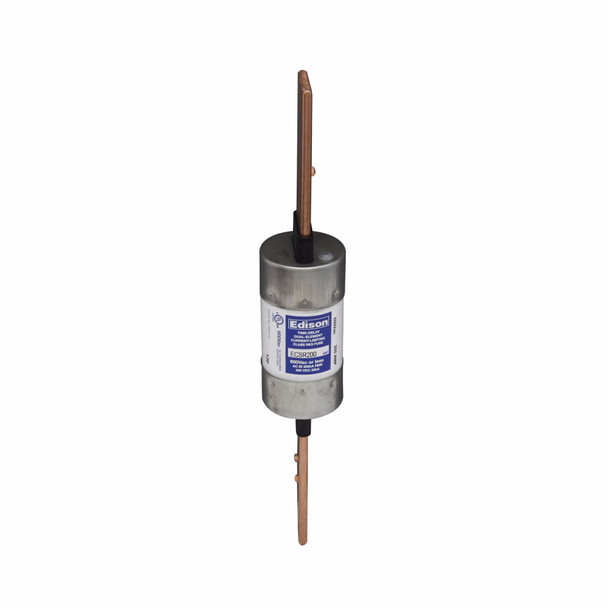

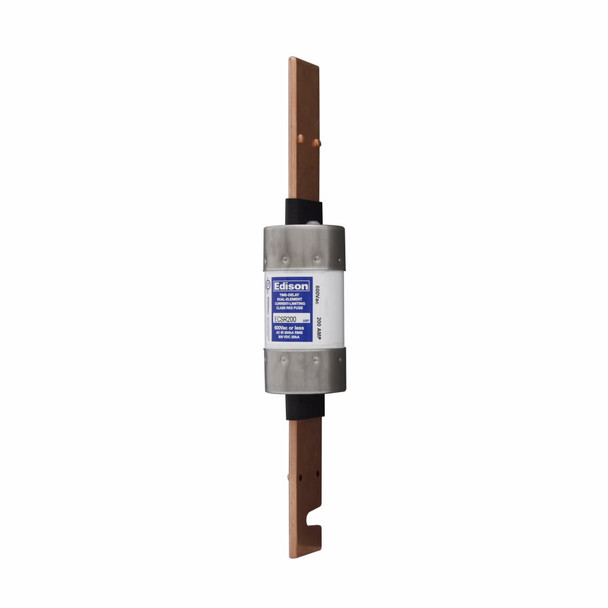

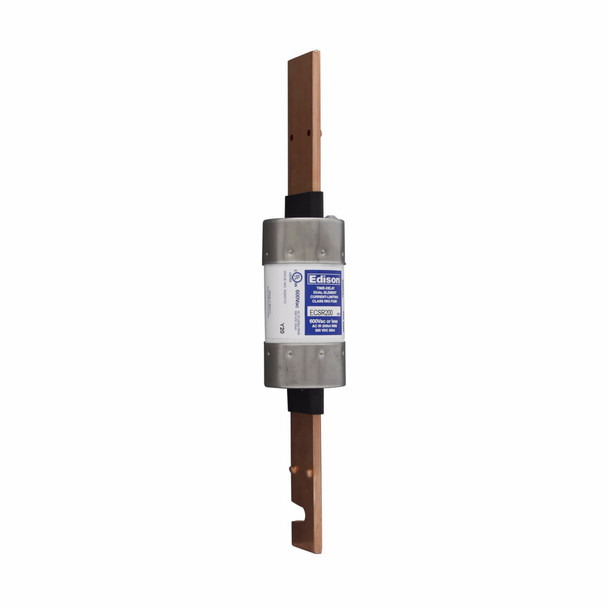

Bussmann ECSR150 Time Delay Fuse
Bussmann Bullet Fuse, Current Limiting Time Delay, Series: ECSR, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 150 A, 600 V, 200 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 1.61 in Dia x 9.63 in L Body Size
Additional Description: BUSS-ECSR150 UL CLASS RK-5 TIME DELAY
Catalog Description: Eaton Edison ECSR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 150 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC, Standard, 600 V
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 150 |
| Amperage Rating | 150 A |
| Body Type | Cartridge |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kAIC |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | ECSR |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Terminal Type | Blade End x Blade End |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
