Description

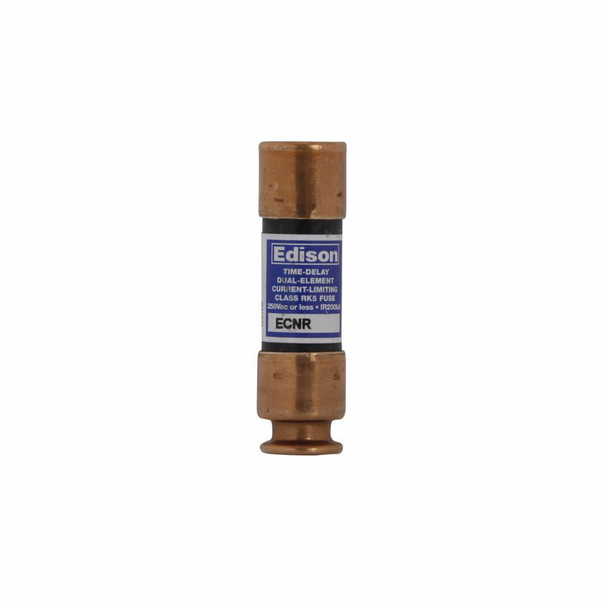

Bussmann ECNR4.5 Time Delay Fuse
Bussmann Bullet Fuse, Current Limiting Time Delay, Series: ECNR, Indicating/Non-Indicating: Non-Indicating, 4.5 A, 250 VAC/125 VDC, 200 kAIC Interrupt, Class: RK5, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size
Additional Description: BUSS-ECNR4.5 UL CLASS RK-5 TIME DELAY
Catalog Description: Eaton Edison ECNR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 4.5 A, Dual, Class RK5, Non-indicating, 8 sec at 500%, 200 kAIC, Standard, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 4.5 |
| Amperage Rating | 4.5 A |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kAIC |
| Material | Fiberglass |
| Mounting type | Clip |
| Response Time | 10 s at 500% |
| Response Time | 8 s at 500% |
| Series | ECNR |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Bullet |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Voltage Rating | 250 VAC, 125 VDC |
| Voltage Rating | 250 VAC/125 VDC |
| Voltage Rating | 250/125 |
