Description

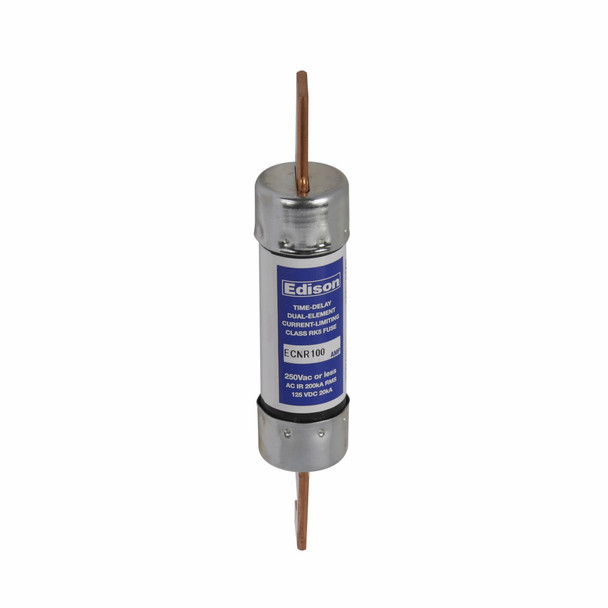

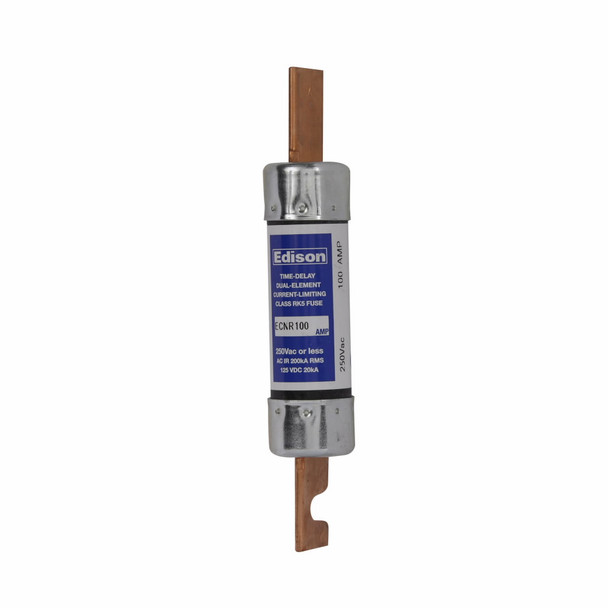

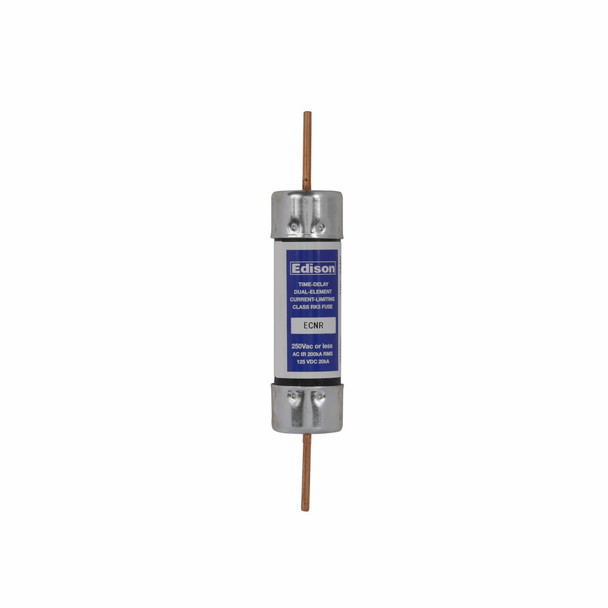

Bussmann ECNR100 Time Delay Fuse
EATON Edison Bullet Time Delay Fuse, Current Limiting, Series: ECNR, Non-Indicating, Rejection, 100 A, 250 VAC, 200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade End x Blade End Terminal, Cylindrical Body, Dual Element, Fiberglass, 1.06 in Dia x 5.88 in L Body
Additional Description: BUSS-ECNR100 UL CLASS RK-5 TIME DELAY
Catalog Description: Eaton Edison ECNR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 100 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC, Standard, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Body Type | Cylindrical |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Fiberglass |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | ECNR |
| Terminal Type | Blade |
| Terminal Type | Blade End x Blade End |
| Type | Current Limiting |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
