Description

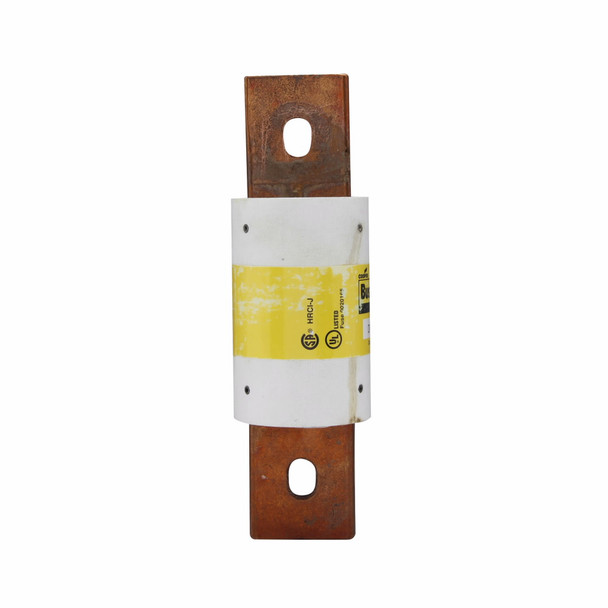

Bussmann DFJ-350 Drive Fuse
Bussmann High Speed Drive Fuse, Current Limiting, Series: DFJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 350 A, 600 VAC/450 VDC, 200/100 kAIC Interrupt, Class: J, Clip-Lock Terminal, Stud Mount, Cartridge Body Type, Silver Element, Melamine, 2.11 in Dia x 7.13 in L Body Size
Additional Description: BUSS-DFJ-350 DRIVE FUSE
Catalog Description: Eaton Bussmann series DFJ high speed fuse, 600 Vac or less, 450 Vdc or less, 350A, 200 kAIC at 600 Vac, 100 kAIC 450 Vdc, Non Indicating, High speed fuse, Clip-lock, Class J, Melamine tube
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 350 |
| Amperage Rating | 350 A |
| Body Type | Cartridge |
| Class | J |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200/100 |
| Interrupt Rating | 200/100 kAIC |
| Material | Melamine |
| Mounting type | Stud |
| Rejection/Non-Rejection | Non-Rejection |
| Series | DFJ |
| Terminal Type | Blade |
| Terminal Type | Clip-Lock |
| Type | Current Limiting |
| Type | Current Limiting High Speed |
| Voltage Rating | 600 VAC/450 VDC |
