Description

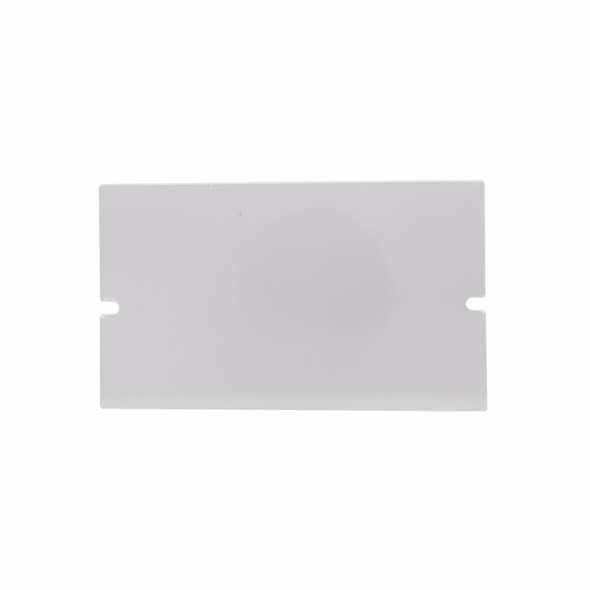

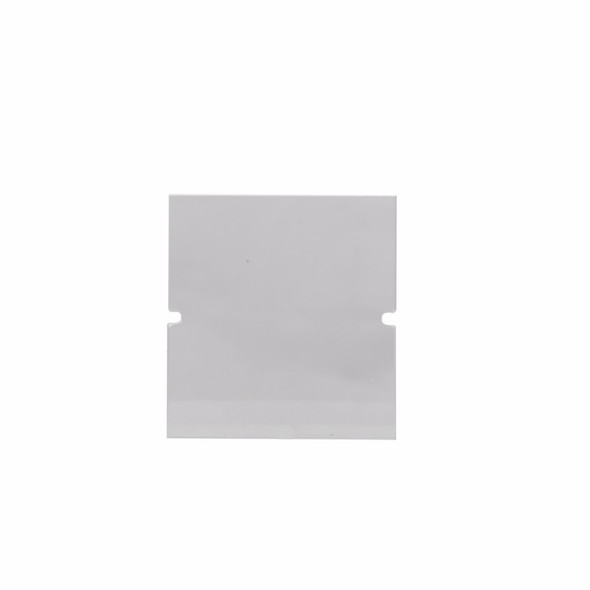

Bussmann CPDB-3 Power Distribution Block Cover
Bussmann Power Distribution Block Cover, 3 Pole, For Use With: PDB/163 Series Power Distribution Blocks, 600 VAC, 200 kAIC Short Circuit Current Rating, 14 AWG to 350 kcmil Cu Wire, 5.34 in L x 4.14 in W
Additional Description: BUSS-CPDB-3 163 SER POWER BLK. COVER
Catalog Description: Eaton Bussmann series cover, Power distribution block, 600 Vac, Panel mount, 200 kAIC (14 AWG to 350 kcmil) short circuit rating, Three-pole, Used with 163 series power terminal block
Specifications
| UNSPSC | 39121629 |
|---|---|
| Color | Clear |
| Dimensions | 5.34 in L x 4.14 in W |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 163 |
| Specifications | 200 kA Short Circuit Current Rating, 14 AWG to 350 kcmil Cu Wire, 600 VAC Voltage Rating |
| Specifications | 600 VAC, 200 kAIC Short Circuit Current Rating, 14 AWG to 350 kcmil Cu Wire |
| Specifications | Panel Mount |
| Suitable For Use With | 163 Series Power Distribution Block |
| Suitable For Use With | PDB/163 Series Power Distribution Blocks |
