Description

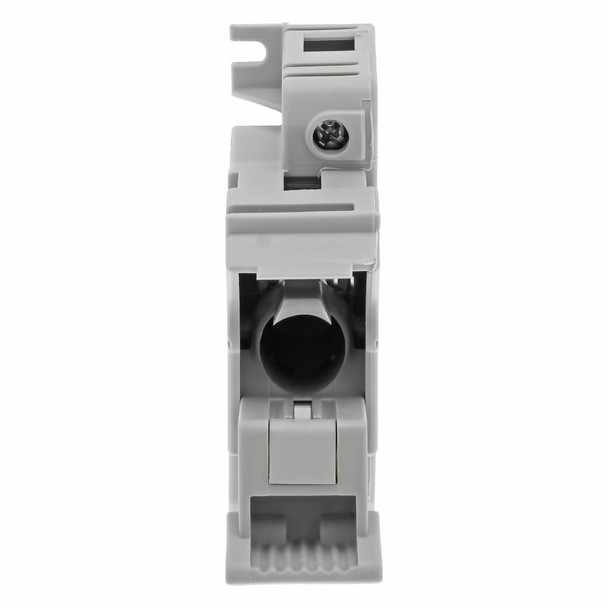

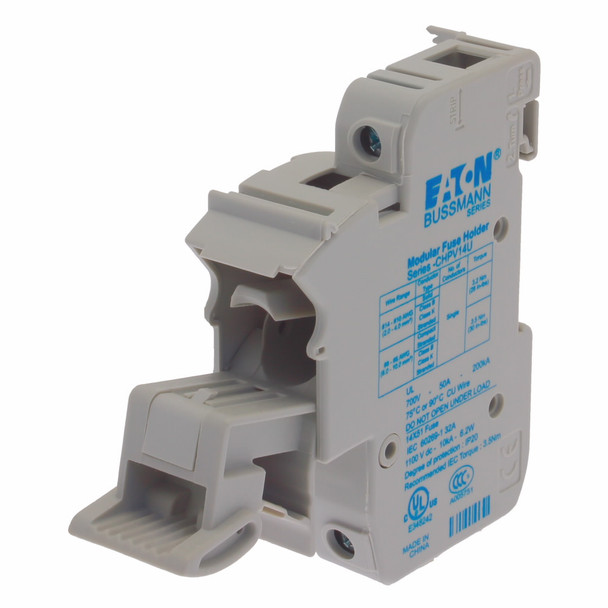

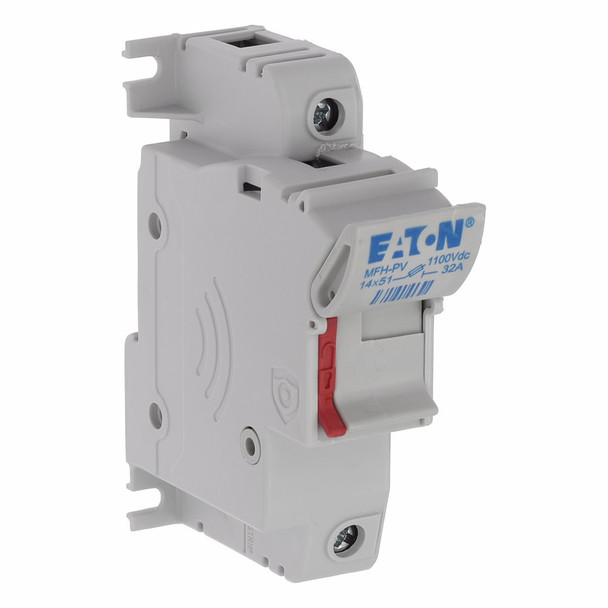

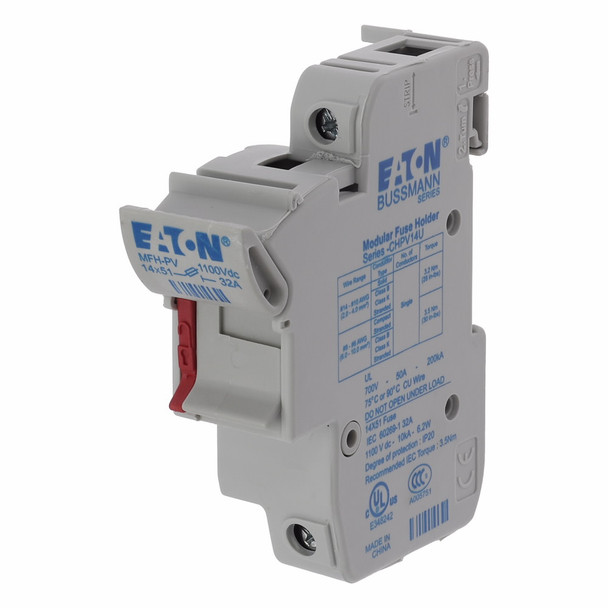

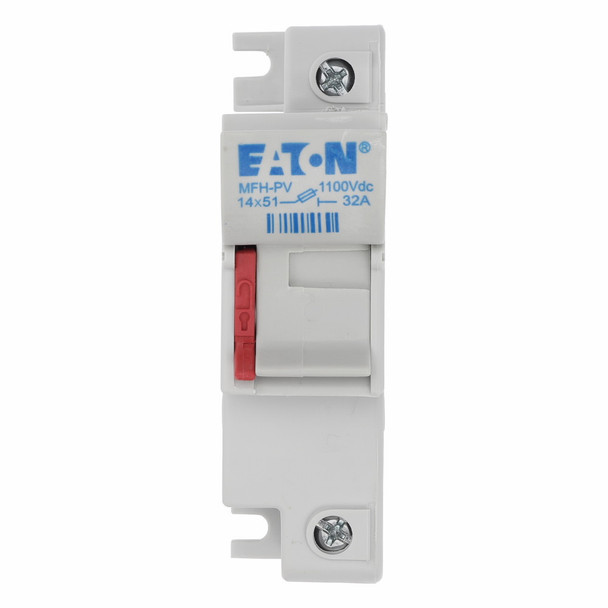

Bussmann CHPV141U
Bussmann Modular Fuse Holder, High Speed, 1500 VDC, 32 A, 1 Pole, DIN Rail Mounting, 51 mm Fuse Length, 14 mm Diameter Fuse, -20 to 90 deg C, For Use With: Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links, 76 mm L x 27 mm W x 92 mm H Dimensions
Additional Description: BUSS-CHPV141U 1P 14x51 PV Fuse Holder
Catalog Description: Fuse-holder, high speed, 32 A, DC 1500 V, 14 x 51 mm, 1P, IEC, UL
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 32 A |
| Dimensions | 76 mm L x 27 mm W x 92 mm H |
| Fuse Diameter | 14 mm |
| Fuse Length | 51 mm |
| Mounting type | DIN Rail |
| Number of Poles | 1 |
| Suitable For Use With | Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links |
| Temperature Rating (Degrees F) | -20 to 90 deg C |
| Type | High Speed |
| Voltage Rating | 1500 VDC |
