Description

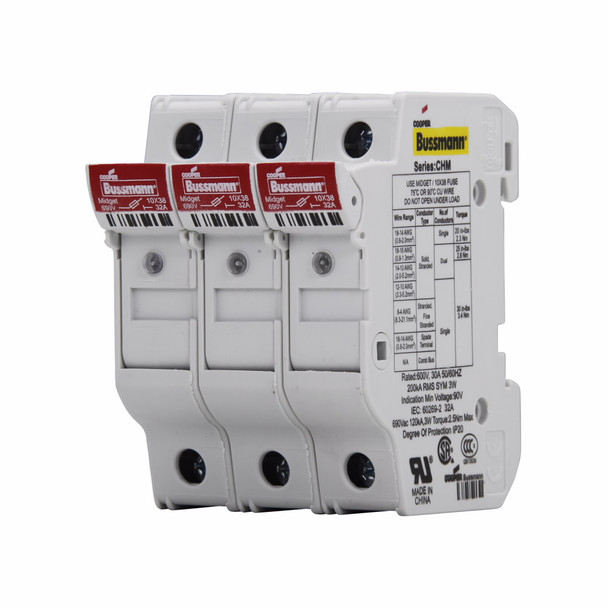

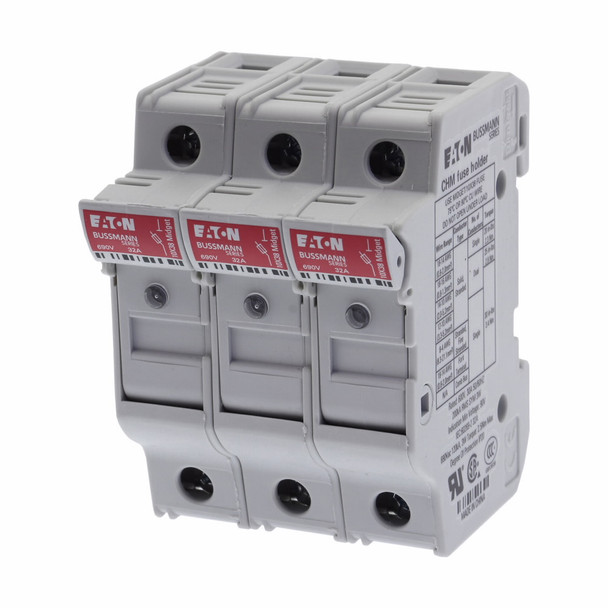

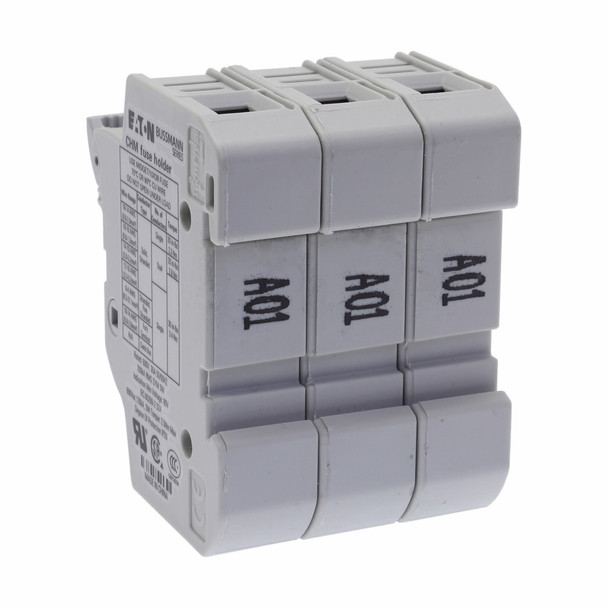

Bussmann CHM3DIU Fuse Holder
Bussmann Fuse Holder, Modular, Series: CH Series, 600/690 V, 30/32 A, 3 Pole, Class: Midget, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, 2.067 in W x 3.275 in D x 2.909 in H
Additional Description: BUSS-CHM3DIU MODULAR FUSE HOLDER, MODULAR, INDICATING indicator
Catalog Description: Eaton Bussmann series CHM modular fuse holder, 600V (UL), 690V (IEC), 30A (UL), 32A (IEC), Modular fuse holder, Three-pole - CHM3DIU
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30/32 |
| Amperage Rating | 30/32 A |
| Class | Midget |
| Dimensions | 2.067 in W x 3.275 in D x 2.909 in H |
| Dimensions | 2.909 in H x 2.067 in W x 3.275 in D |
| Fuse Diameter | 10 |
| Fuse Diameter | 10 mm |
| Fuse Length | 38 |
| Fuse Length | 38 mm |
| Mounting type | DIN Rail |
| Number of Poles | 3 |
| Series | CH Series |
| Suitable For Use With | AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse |
| Suitable For Use With | AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse |
| Suitable For Use With | FNQ, KLM, FNM, KTK, BAF, FWA, DCM, C10, AGU, BAN, FWC 10 x 38 mm Midget Fuses |
| Temperature Rating (Degrees F) | -20 to 90 |
| Temperature Rating (Degrees F) | -20 to 90 deg C |
| Type | Modular |
| Voltage Rating | 600/690 |
| Voltage Rating | 600/690 V |
| Wire Size | 18 to 4 |
| Wire Size | 18 to 4 AWG |
