Description

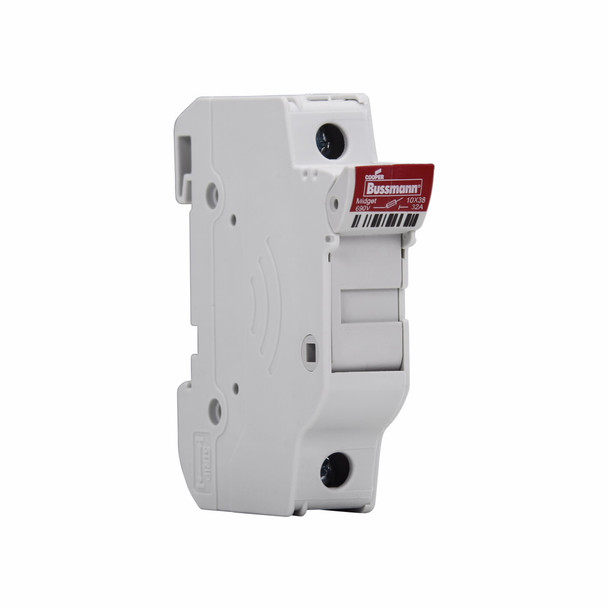

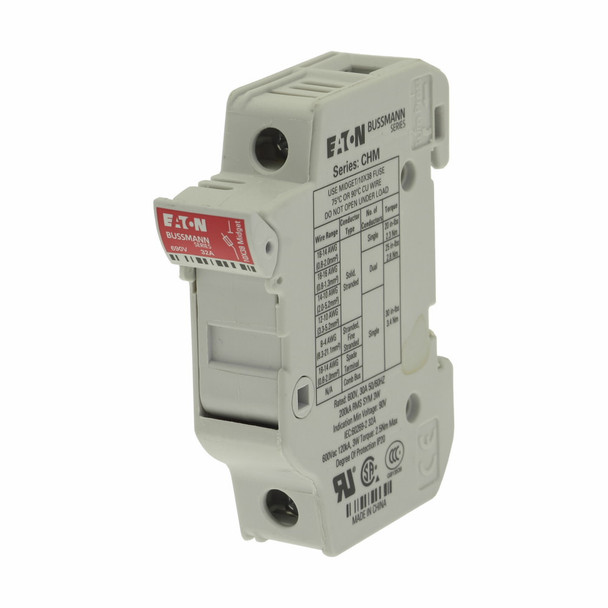

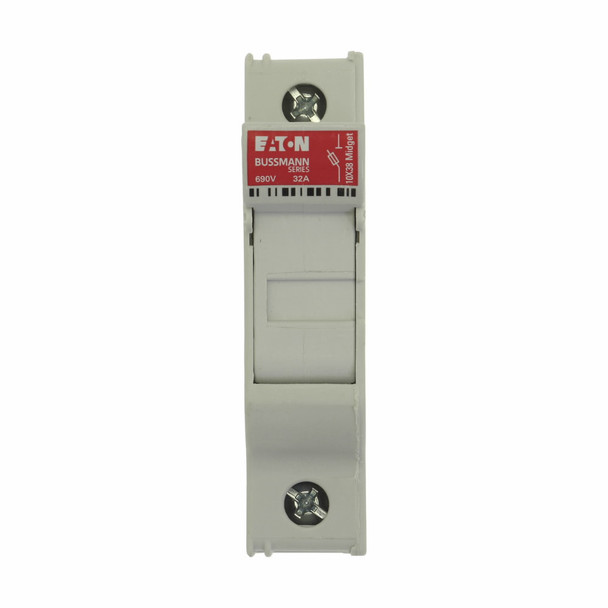

Bussmann CHM1DU Fuse Holder
Bussmann Fuse Holder, Modular, Series: CH Series, 600/690 VAC, 30/32 A, 1 Pole, Class: Midget, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse, 2.909 in H x 0.689 in W x 3.275 in D
Additional Description: BUSS-CHM1DU Modular fuse holder, 30A, Single-Pole
Catalog Description: Eaton Bussmann series CHM modular fuse holder, Modular fuse holder
Specifications
| UNSPSC | 39121616 |
|---|---|
| Amperage Rating | 30/32 |
| Amperage Rating | 30/32 A |
| Class | CC |
| Class | Midget |
| Color | White |
| Connection type | Spade Lug |
| Dimensions | 2.909 in H x 0.689 in W x 3.275 in D |
| Fuse Diameter | 10 |
| Fuse Diameter | 10 mm |
| Fuse Length | 38 |
| Fuse Length | 38 mm |
| Material | Polyester |
| Mounting type | DIN Rail |
| Number of Phases | 1/3 |
| Number of Poles | 1 |
| Series | CH Series |
| Suitable For Use With | AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse |
| Suitable For Use With | FNQ/KLM/FNM/KTK/BAF/FWA/PVM/C10/AGU/BAN/FWC Series Midget Fuse |
| Temperature Rating (Degrees F) | -20 to 120 |
| Temperature Rating (Degrees F) | -20 to 120 deg C |
| Type | Finger Safe Modular |
| Type | Modular |
| Voltage Rating | 600 VAC/690 VDC |
| Voltage Rating | 600/690 |
| Voltage Rating | 600/690 VAC |
| Wire Size | 18 to 4 |
| Wire Size | 18 to 4 AWG |
