Description

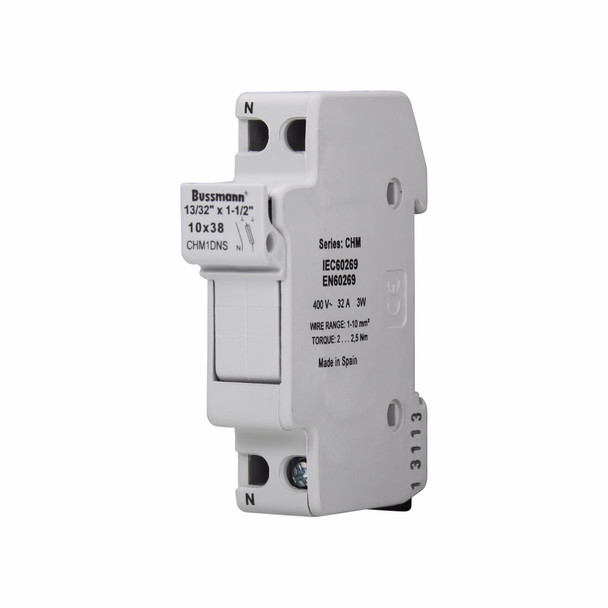

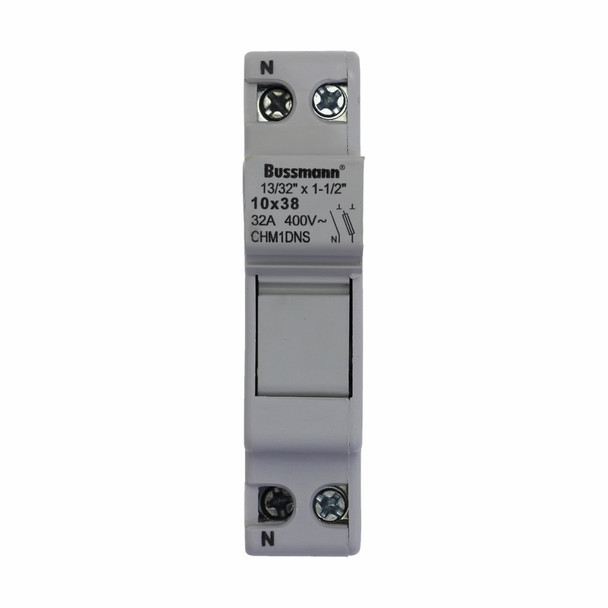

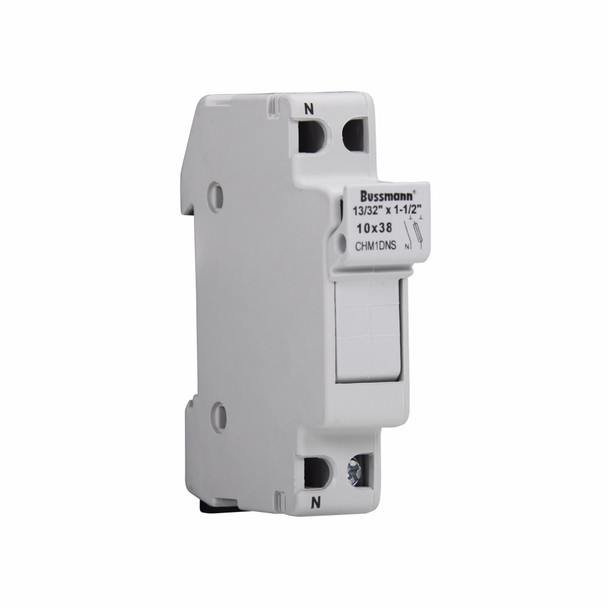

Bussmann CHM1DNXU Fuse Holder
Bussmann Fuse Holder, Modular, Series: CHM, 690 V, 32 A, 1+N Pole, Class: CC/Midget, Screw, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: UL Class CC and Supplemental Fuses and IEC 10x38 Fuses, 0.689 in W x 3.275 in D x 2.909 in H
Additional Description: BUSS-CHM1DNXU MODULAR FUSE HOLDER, MODULAR, 32A (IEC), (IEC)
Catalog Description: Eaton Bussmann series CHM modular fuse holder, 690V (IEC), 32A (IEC), Modular fuse holder
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 32 |
| Amperage Rating | 32 A |
| Class | CC/Midget |
| Connection type | Screw |
| Dimensions | 0.689 in W x 3.275 in D x 2.909 in H |
| Dimensions | 2.909 in H x 0.689 W x 3.275 in D |
| Fuse Diameter | 10 |
| Fuse Diameter | 10 mm |
| Fuse Length | 38 |
| Fuse Length | 38 mm |
| Mounting type | DIN Rail |
| Number of Poles | 1+N |
| Series | CH Series |
| Series | CHM |
| Suitable For Use With | UL Class CC and Supplemental Fuses and IEC 10x38 Fuses |
| Temperature Rating (Degrees F) | -20 to 120 |
| Temperature Rating (Degrees F) | -20 to 120 deg C |
| Type | Modular |
| Voltage Rating | 690 |
| Voltage Rating | 690 V |
| Wire Size | 18 to 4 |
| Wire Size | 18 to 4 AWG |
