Description

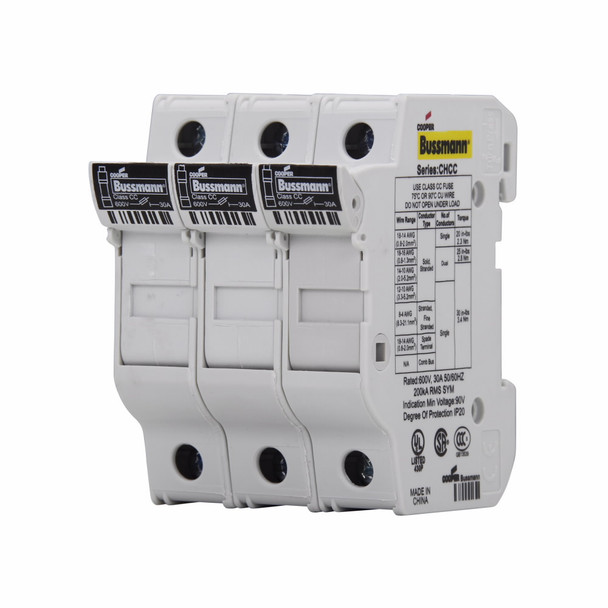

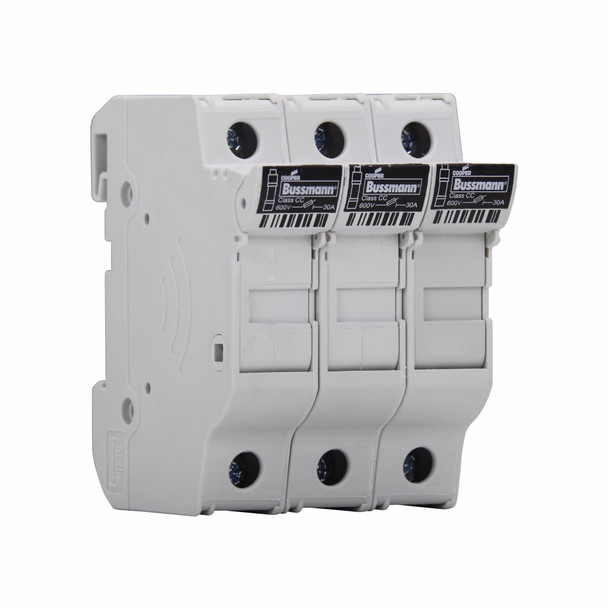

Bussmann CHCC3DU Fuse Holder
Bussmann Fuse Holder, Modular, Series: CH Series, 48 VDC, 30 A, 3 Pole, Class: CC, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: KTK-R, LP-CC and FNQ-R Fuse, 2.067 in W x 3.275 in D x 2.909 in H
Additional Description: BUSS-CHCC3DU CCP CC
Catalog Description: Eaton Bussmann series CHCC modular fuse holder, 600 Vdc, 30 A, Three-pole
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Class | CC |
| Dimensions | 2.067 in W x 3.275 in D x 2.909 in H |
| Dimensions | 2.909 in H x 2.067 in W x 3.275 in D |
| Fuse Diameter | 10 mm |
| Fuse Length | 38 mm |
| Mounting type | DIN Rail |
| Number of Poles | 3 |
| Series | CH Series |
| Suitable For Use With | KTK-R, LP-CC and FNQ-R Class CC Fuses |
| Suitable For Use With | KTK-R, LP-CC and FNQ-R Fuse |
| Temperature Rating (Degrees F) | -20 to 120 |
| Temperature Rating (Degrees F) | -20 to 120 deg C |
| Type | Modular |
| Voltage Rating | 48 |
| Voltage Rating | 48 VDC |
| Wire Size | 18 to 4 |
| Wire Size | 18 to 4 AWG |
