Description

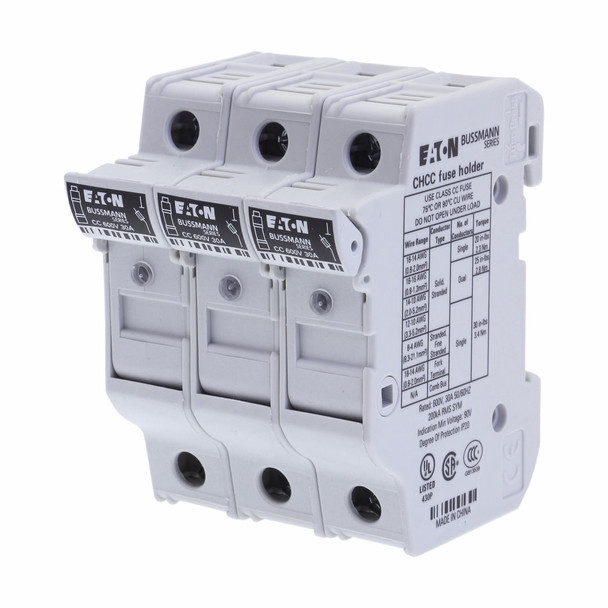

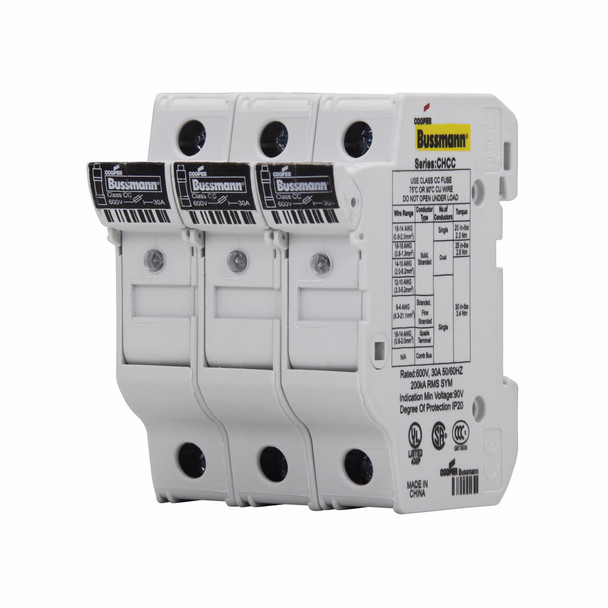

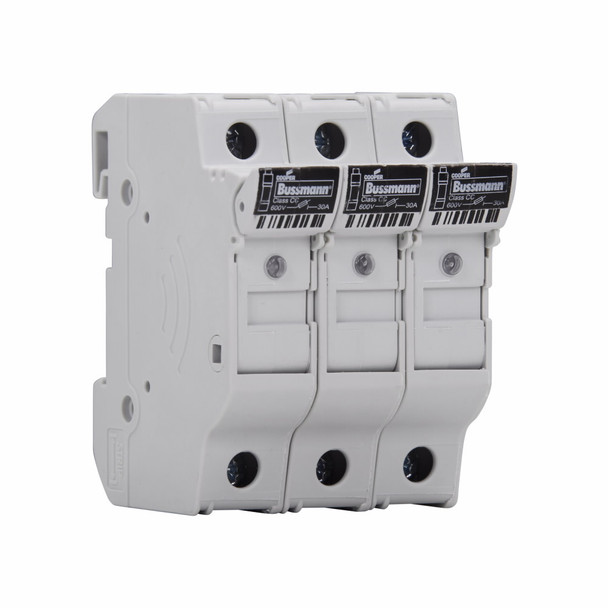

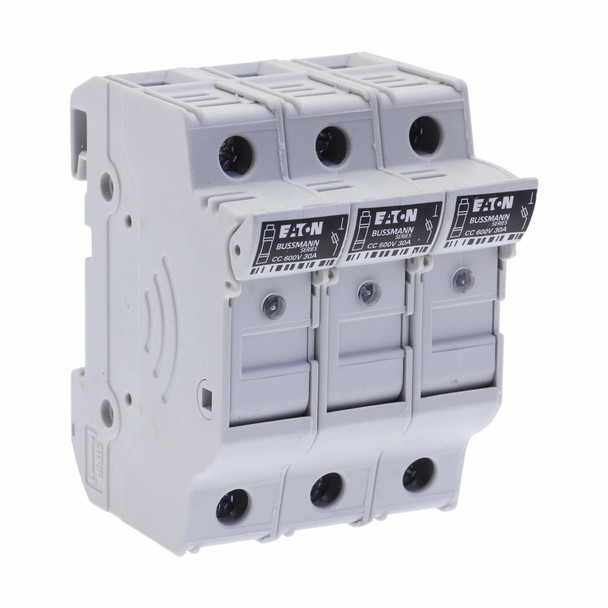

Bussmann CHCC3DIU Modular Fuse Holder
Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 48 VDC, 30 A, 3 Pole, Class: CC, Fuse Holder Code: W, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: KTK-R, LP-CC and FNQ-R Series CC Fuse, Polyester, White, 2.067 in W x 3.275 in D x 2.909 in H
Additional Description: BUSS-CHCC3DIU CCP CC-indicator
Catalog Description: Eaton Bussmann series CHCC modular fuse holder, 48 Vdc, 30 A, Three-pole, With indicator
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Class | CC |
| Color | White |
| Connection type | Spade Lug |
| Dimensions | 2.067 in W x 3.275 in D x 2.909 in H |
| Dimensions | 2.909 in H x 2.067 in W x 3.275 in D |
| Fuse Diameter | 10 |
| Fuse Diameter | 10 mm |
| Fuse Length | 38 |
| Fuse Length | 38 mm |
| Material | Polyester |
| Mounting type | DIN Rail |
| Number of Phases | 1/3 |
| Number of Poles | 3 |
| Series | CH Series |
| Suitable For Use With | KTK-R, LP-CC and FNQ-R Series CC Fuse |
| Suitable For Use With | KTK-R, LP-CC and FNQ-R Series Class CC Fuse |
| Suitable For Use With | KTK-R/LP-CC/FNQ-R Series Class CC Fuse |
| Temperature Rating (Degrees F) | -20 to 90 |
| Temperature Rating (Degrees F) | -20 to 90 deg C |
| Type | Finger Safe Modular |
| Type | Finger-Safe |
| Voltage Rating | 48 |
| Voltage Rating | 48 VDC |
| Voltage Rating | 600 VAC/48 VDC |
| Voltage Rating | 600 VDC |
| Wire Size | 18 to 4 |
| Wire Size | 18 to 4 AWG |
