Description

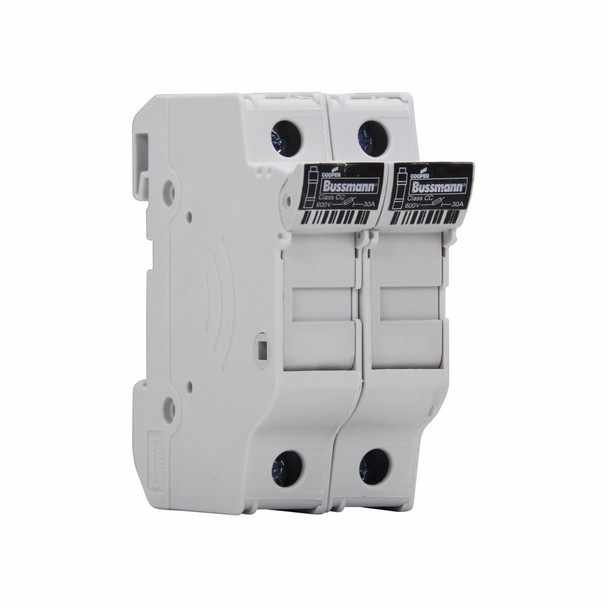

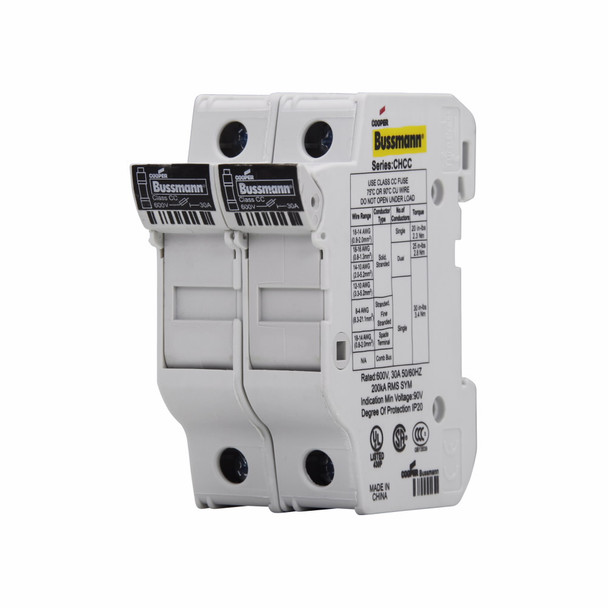

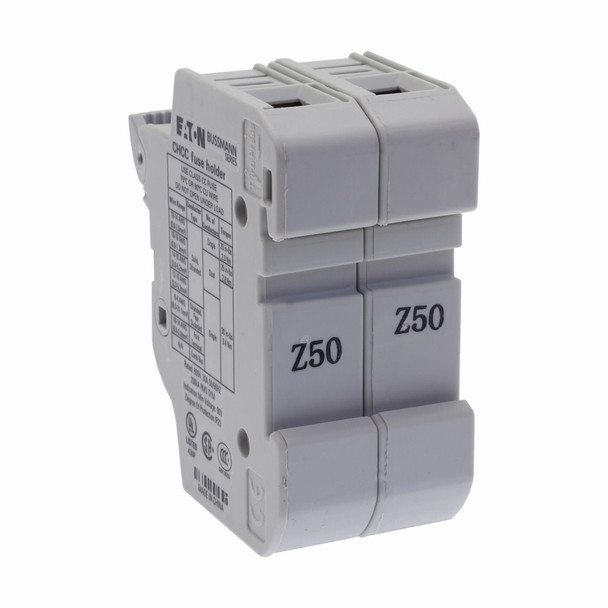

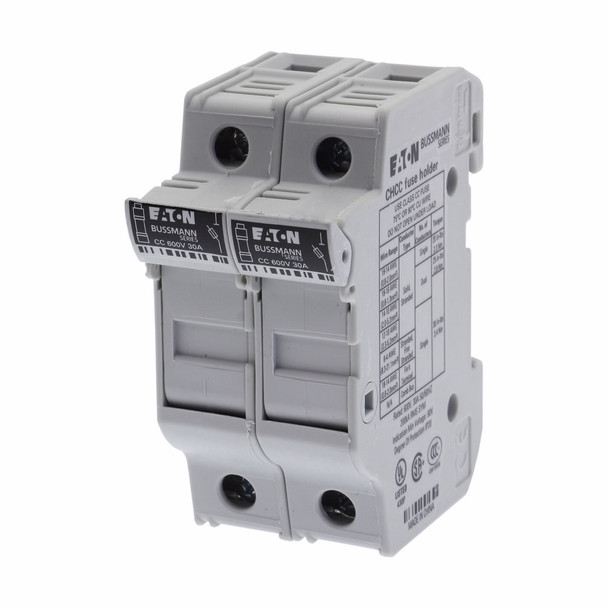

Bussmann CHCC2DU Fuse Holder
Bussmann Fuse Holder, Modular, Series: CH Series, 48 VDC, 30 A, 2 Pole, Class: CC, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: KTK-R, LP-CC and FNQ-R Fuse, 1.378 in W x 3.275 in D x 2.909 in H
Additional Description: BUSS-CHCC2DU CCP CC
Catalog Description: Eaton Bussmann series CHCC modular fuse holder, 48 Vdc, 30 A, Two-pole
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 A |
| Class | CC |
| Dimensions | 1.378 in W x 3.275 in D x 2.909 in H |
| Fuse Diameter | 10 mm |
| Fuse Length | 38 mm |
| Number of Poles | 2 |
| Series | CH Series |
| Suitable For Use With | KTK-R, LP-CC and FNQ-R Fuse |
| Temperature Rating (Degrees F) | -20 to 120 deg C |
| Type | Modular |
| Voltage Rating | 48 VDC |
| Wire Size | 18 to 4 AWG |
