Description

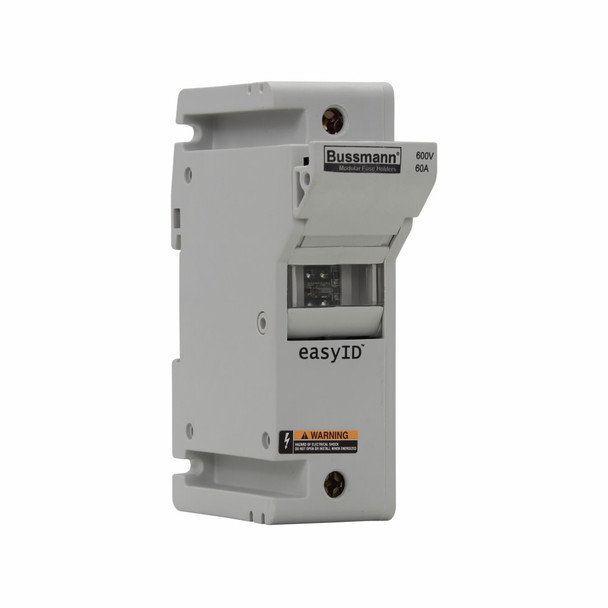

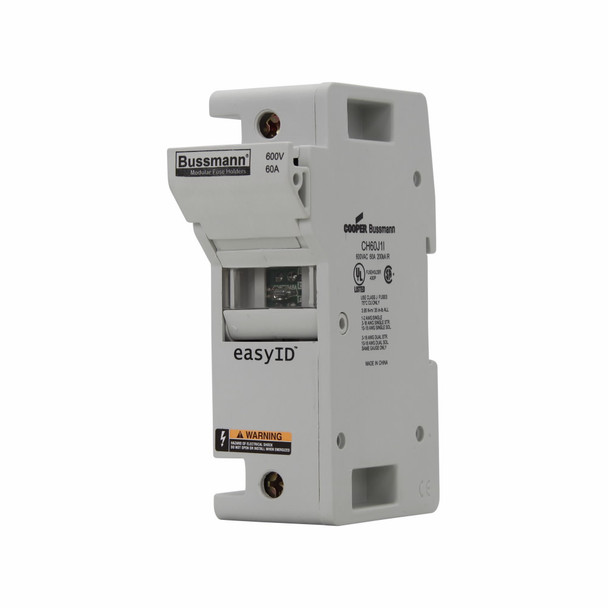

Bussmann CH60J1I
Bussmann easyID Fuse Holder, Finger Safe Modular, Series: CH, 600 VAC/VDC, 60 A, 1 Pole, 3, Class: J, Box Lug, 18 to 1 AWG Wire, DIN Rail/Panel Mount, 2.38 in Fuse Length, 1.06 in Fuse Dia, 85 deg C, For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series Class J High Speed Fuse, Copper/Thermoplastic, White, 1.58 in L x 3.31 in W x 4.88 in H
Additional Description: BUSS-CH60J1I 60AJ INDICATOR FUSEHOLDER SINGLE POLE
Catalog Description: Eaton Bussmann series CH modular fuse holder, 600 Vac, 600 Vdc, 60A, Single-pole, Neon lamp
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 60 A |
| Class | J |
| Color | White |
| Connection type | Box Lug |
| Dimensions | 1.58 in L x 3.31 in W x 4.88 in H |
| Fuse Diameter | 1.06 in |
| Fuse Length | 2.38 in |
| Material | Copper/Thermoplastic |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Phases | 3 |
| Number of Poles | 1 |
| Series | CH |
| Series | CH Series |
| Suitable For Use With | LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series Class J High Speed Fuse |
| Suitable For Use With | LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed Class J Fuse |
| Temperature Rating (Degrees F) | 85 deg C |
| Type | Finger Safe Modular |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 18 to 1 AWG |
