Description

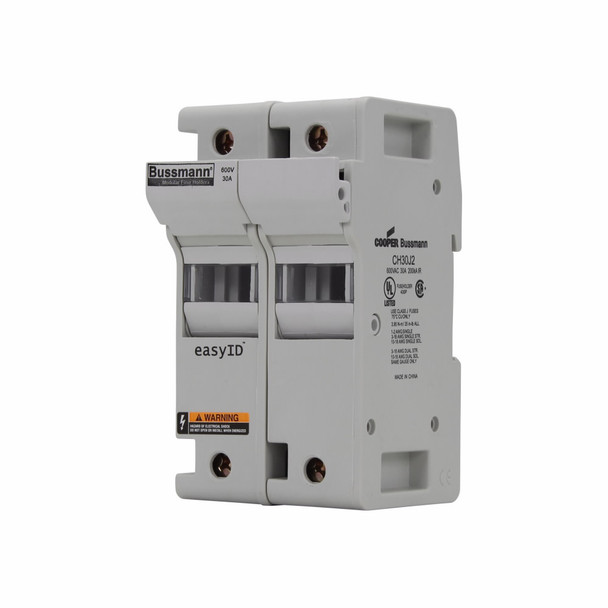

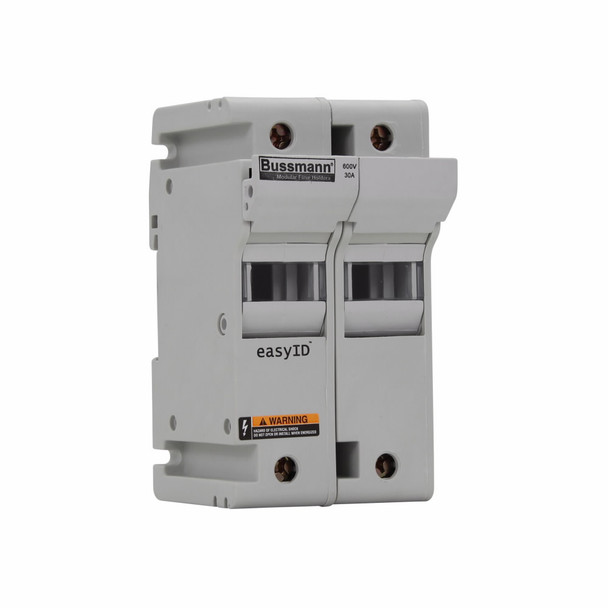

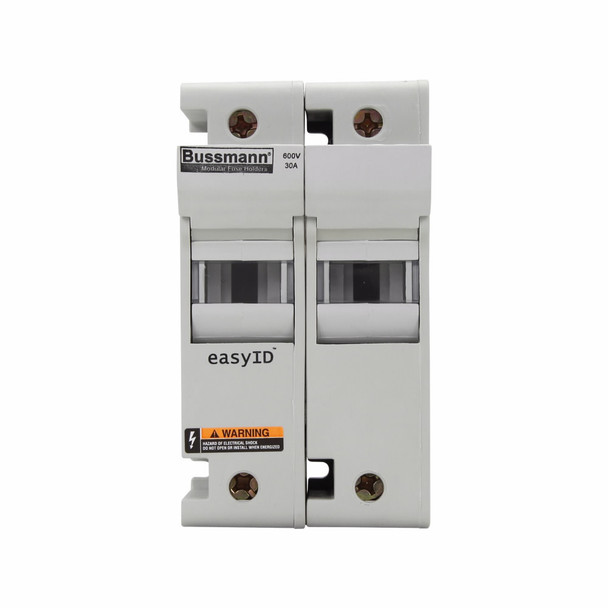

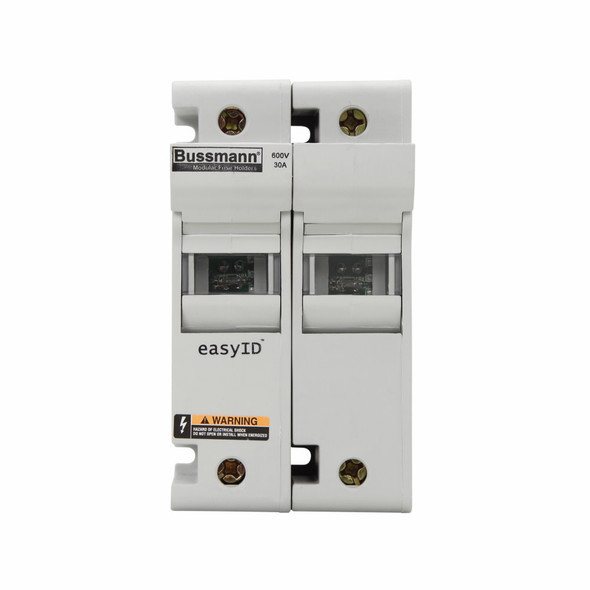

Bussmann CH30J2 Fuse Holder
Bussmann easyID Fuse Holder, Finger Safe Modular, Series: CH Series, 600 VAC/VDC, 30 A, 2 Pole, 3, Class: J, Box Lug, 18 to 1 AWG Wire, DIN Rail/Panel Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, 85 deg C, For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse, Thermoplastic/Tin Plated Copper, White, 2.56 in L x 2.83 in W x 4.59 in H
Additional Description: BUSS-CH30J2 30AJ MODULEAR FUSEHOLDER 2 POLE
Catalog Description: Eaton Bussmann series CH modular fuse holder, 600 Vac, 600 Vdc, 30A, Two-pole
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Class | J |
| Color | White |
| Connection type | Box Lug |
| Dimensions | 2.56 in L x 2.83 in W x 4.59 in H |
| Fuse Diameter | 0.81 |
| Fuse Diameter | 0.81 in |
| Fuse Length | 2-1/4 |
| Fuse Length | 2-1/4 in |
| Material | Thermoplastic |
| Material | Thermoplastic/Tin Plated Copper |
| Mounting type | DIN Rail/Panel |
| Number of Phases | 3 |
| Number of Poles | 2 |
| Series | CH Series |
| Suitable For Use With | LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed Class J Fuse |
| Suitable For Use With | LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse |
| Temperature Rating (Degrees F) | 85 |
| Temperature Rating (Degrees F) | 85 deg C |
| Type | Finger Safe Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 18 to 1 |
| Wire Size | 18 to 1 AWG |
