Description

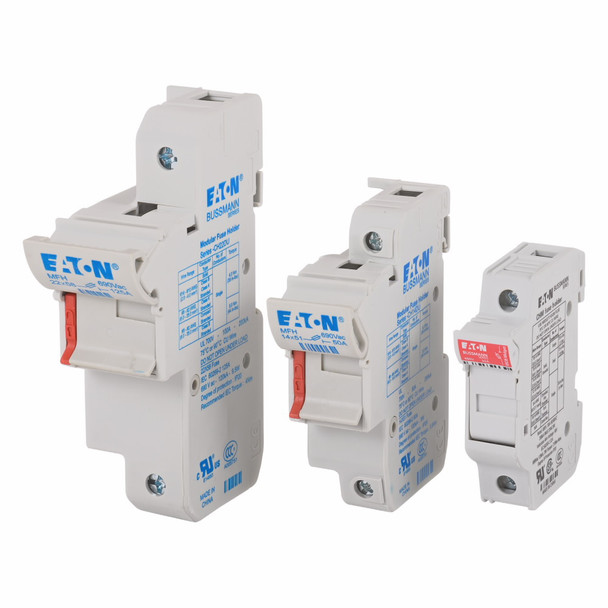

Bussmann CH143DU
Bussmann Modular Fuse Holder, Low Voltage Cylindrical, 690 VAC, 50 A, 3 Pole, DIN Rail Mounting, 51 mm Fuse Length, 14 mm Diameter Fuse, -20 to 70 deg C, For Use With: Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links, 225 mm L x 48 mm W x 80 mm H Dimensions
Additional Description: BUSS-CH143DU (M) 3P 14x51 Fuse Holder
Catalog Description: Eaton's Bussmann series 3-Pole modular fuse holder, rated at 690 V a.c./750 V d.c. (IEC), 700 V a.c. (UL), 50 Amps (IEC and UL), suitable for 14 x 51 mm Cylindrical fuses
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 50 A |
| Dimensions | 225 mm L x 48 mm W x 80 mm H |
| Fuse Diameter | 14 mm |
| Fuse Length | 51 mm |
| Mounting type | DIN Rail |
| Number of Poles | 3 |
| Suitable For Use With | Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Type | Low Voltage Cylindrical |
| Voltage Rating | 690 VAC |
