Description

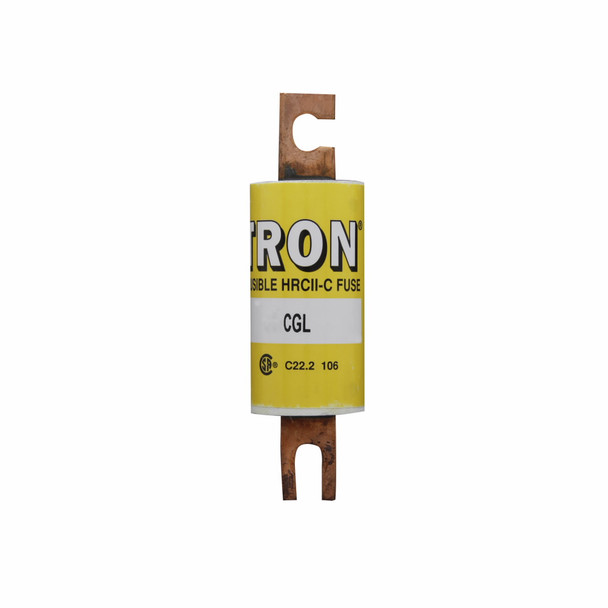

Bussmann CGL-125 Fuse
Bussmann Tron Fuse, HRC Form II Current Limiting Non-Indicating, Series: CGL, 125 A, 600 VAC/250 VDC, 200 kAIC at 600 VAC, 40 kAIC at 250 VDC Interrupt, Class: C, Blade End Terminal, Stud Mount, Cartridge Body Type, Dual Element, Fiberglass, 1.5 in Dia x 5.31 in L Body Size
Additional Description: BUSS-CGL-125 LIMITRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series Tron CGL HRC form II Class C fuse, 125A, 200 kAIC at 600 Vac, 40 kAIC at 250 Vdc, Non Indicating, Current-limiting, HRC Form II, Blade end X blade end, Class C
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 125 A |
| Body Type | Cartridge |
| Class | C |
| Interrupt Rating | 200 kAIC at 600 VAC, 40 kAIC at 250 VDC |
| Interrupt Rating | 200/40 |
| Material | Fiberglass |
| Mounting type | Stud |
| Series | CGL |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | HRC Form II Current Limiting Non-Indicating |
| Voltage Rating | 600 VAC/250 VDC |
