Description

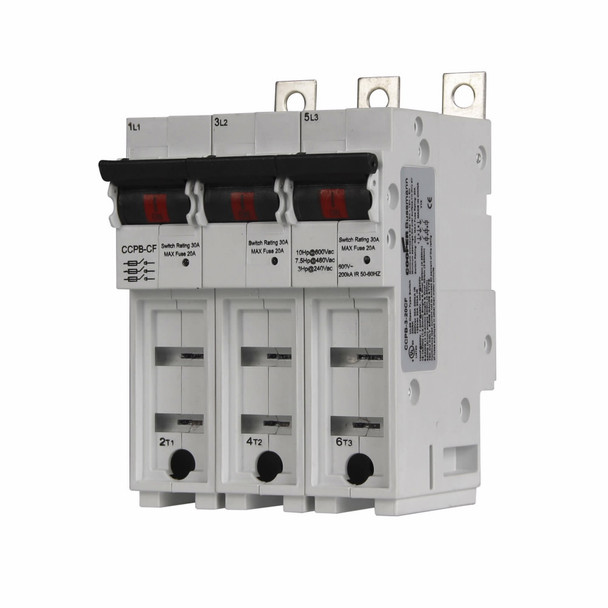

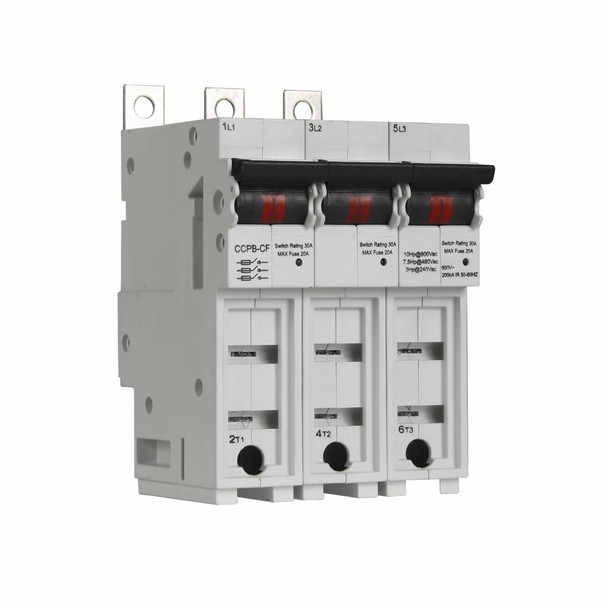

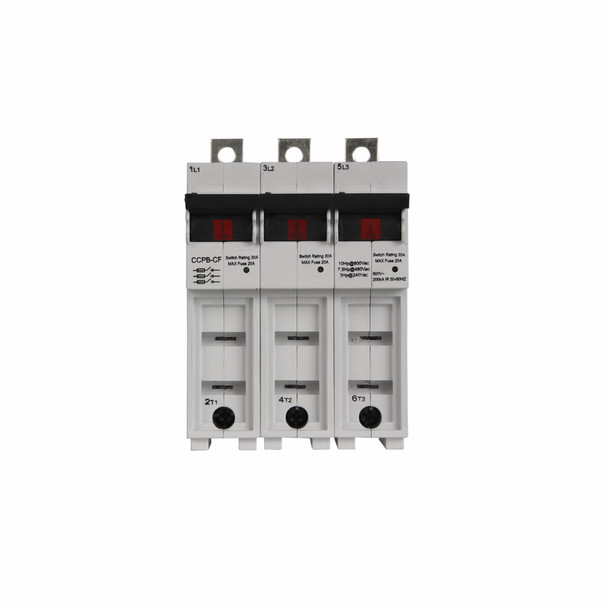

Bussmann CCPB-3-40CF Compact Circuit Protector Base
Bussmann CUBEFuse Compact Circuit Protector Base, Finger Safe Fusible Disconnect Lock-On Provision, Series: CCPB, 600 VAC, 40 A, 3 Pole, Class CF Fuse, 18 to 4 AWG Wire, Solid/Stranded Copper Wire, Bolted-On Mounting, Switch Handle Operator, -20 to 75 deg C Operating, 3.9 in Width, 2.9 in Height, 3 in Depth, Polyethersulfone
Additional Description: BUSS-CCPB-3-40CF CCP BASE, 3 POLE, 40A CF PANEL BOARD
Catalog Description: Eaton Bussmann series CCPB UL98 fusible disconnect, Finger Safe, Lock-On provision, 600V, 40A, UL98 fusible disconnect, Three-pole, Class CF, 200KA
Specifications
| UNSPSC | 39122233 |
|---|---|
| Actuator Type | Switch Handle |
| Amperage Rating | 40 |
| Amperage Rating | 40 A |
| Depth | 3 in |
| Dimensions | 4.4 in L x 3 in W x 2.3 in H |
| Enclosure Type | NEMA 1/3R |
| Frequency Rating | 50/60 |
| Fuse Type | Class CF |
| Height | 2.9 in |
| Horsepower | 7-1/2 hp, 10 hp, 20 hp |
| Insulation Type | Class CF |
| Material | Glass Filled Polyethersulfone |
| Material | Polyethersulfone |
| Mounting type | Bolted-On |
| Mounting type | Bolt-On |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Operating Temperature | -20 to 75 deg C |
| Operator | Switch Handle |
| Phase | 3 |
| Series | CCPB |
| Short Circuit Current Rating (kA) | 200 |
| Temperature Rating (Degrees F) | -20 to 75 |
| Terminal Type | Box Lug Load Side |
| Type | Compact Finger Safe |
| Type | Finger Safe Fusible Disconnect Lock-On Provision |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
| Width | 3.9 in |
| Wire Size | 18 to 4 AWG |
| Wire Type | Solid/Stranded Copper |
