Description

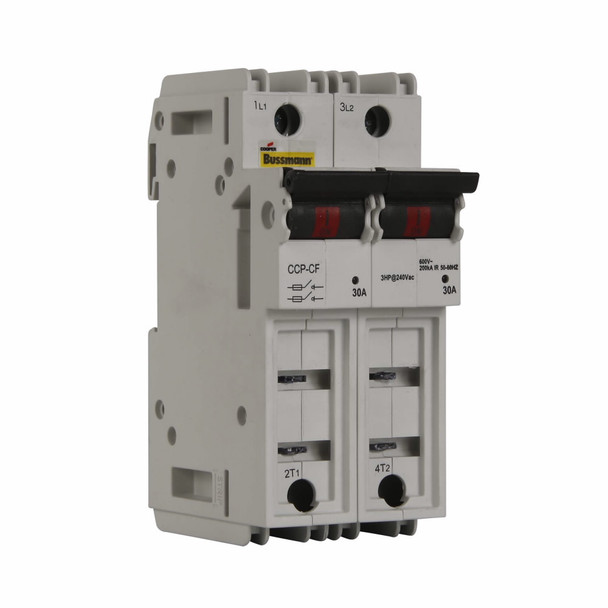

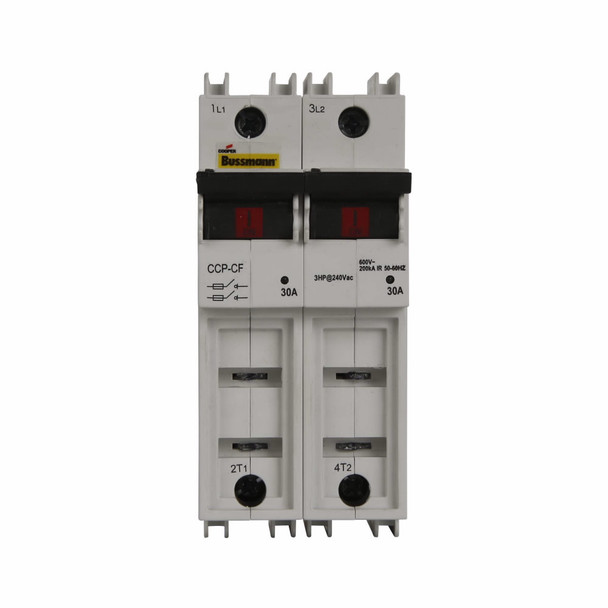

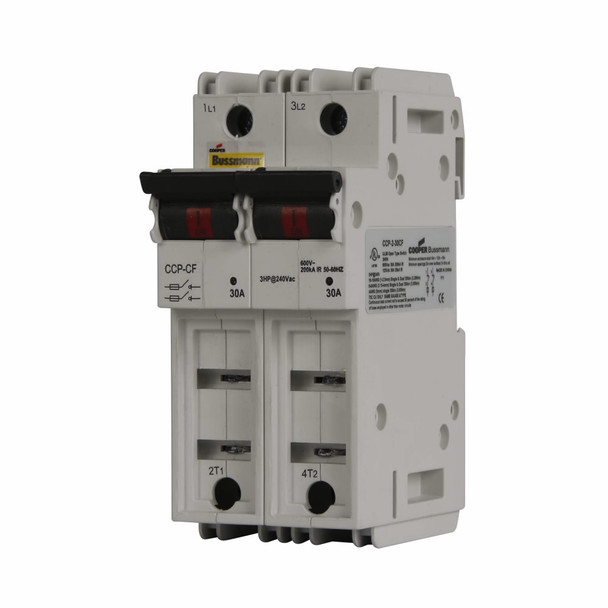

Bussmann CCP-2-60CF Compact Circuit Protector
Bussmann CUBEFuse Compact Circuit Protector, Fusible Disconnect, Series: CCP, 600 VAC/125 VDC, 60 A, 2 Pole, Class CF Fuse, 4 AWG Wire, Single Solid/Stranded Copper Wire, DIN Rail Mounting, Padlockable Handle Operator, -20 to 75 deg C Operating, 3 in Width, 4-1/2 in Height, 3 in Depth
Additional Description: BUSS-CCP-2-60CF COMPACT CIRCUIT PROTECTOR, 2 POLE,60A CF
Catalog Description: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 60A, UL98 fusible disconnect, Two-pole, CUBEFuse
Specifications
| UNSPSC | 39122233 |
|---|---|
| Amperage Rating | 60 A |
| Depth | 3 |
| Depth | 3 in |
| Fuse Type | Class CF |
| Fuse Type | CUBEFuse™ Class J |
| Height | 4-1/2 |
| Height | 4-1/2 in |
| Mounting type | DIN Rail |
| Number of Poles | 2 |
| Operating Temperature | -20 to 75 |
| Operating Temperature | -20 to 75 deg C |
| Operator | Padlockable Handle |
| Series | CCP |
| Type | Fusible Disconnect |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/125 VDC |
| Width | 2 |
| Width | 3 |
| Width | 3 in |
| Wire Size | 18 to 6 |
| Wire Size | 4 |
| Wire Size | 4 AWG |
| Wire Type | Single Solid/Stranded Copper |
| Wire Type | Solid Copper/Stranded |
