Description

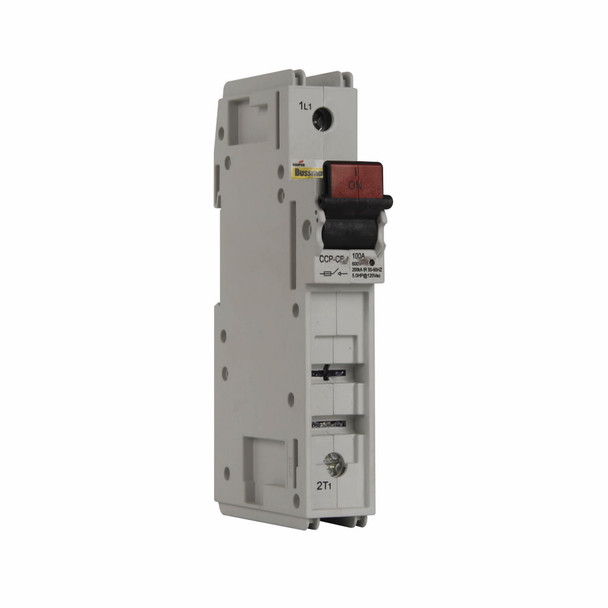

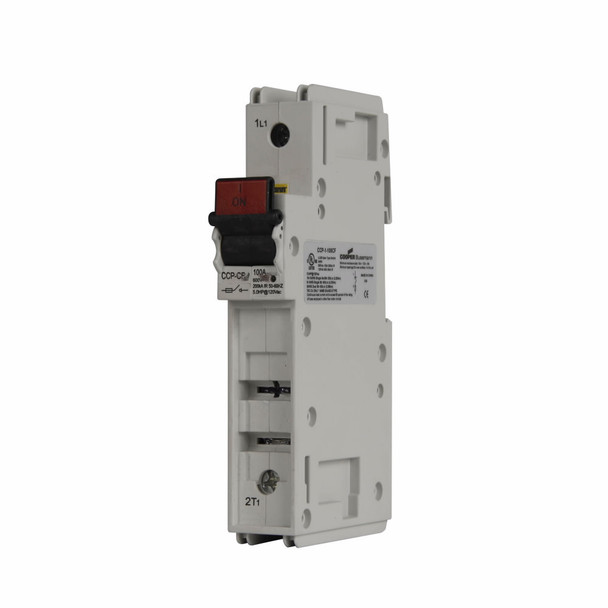

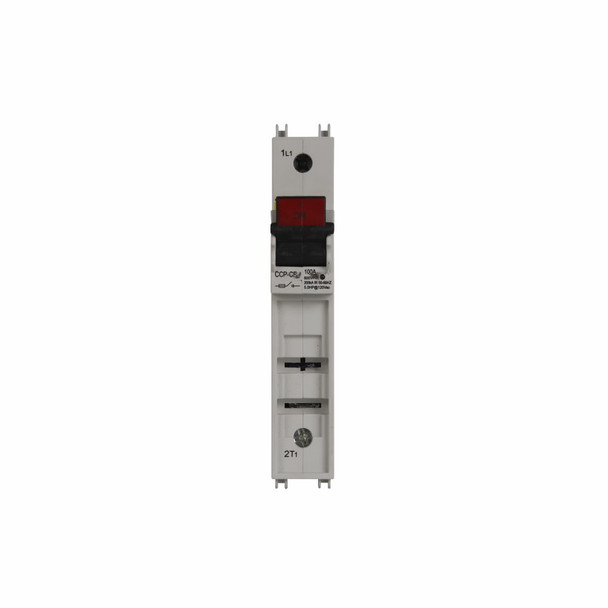

Bussmann CCP-1-100CF Compact Circuit Protector
Bussmann CUBEFuse Compact Circuit Protector, Fusible Disconnect, Series: CCP, 600 VAC/125 VDC, 100 A, 1 Pole, Class CF Fuse, 18 to 6 AWG Wire, Solid/Stranded Wire, DIN Rail Mounting, Padlockable Handle Operator, -20 to 75 deg C Operating, 6.1 in Width, 3.7 in Height, 7.1 in Depth
Additional Description: BUSS-CCP-1-100CF 1 Pole Comp Ckt Protector 600Vdc 100A
Catalog Description: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 100A, UL98 fusible disconnect, Single-pole
Specifications
| UNSPSC | 39122233 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Depth | 7.1 |
| Depth | 7.1 in |
| Fuse Type | Class CF |
| Fuse Type | Class J CUBEFuse |
| Height | 3.7 |
| Height | 3.7 in |
| Mounting type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature | -20 to 75 |
| Operating Temperature | -20 to 75 deg C |
| Operator | Padlockable Handle |
| Series | CCP |
| Type | Fusible Disconnect |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/125 VDC |
| Width | 6.1 |
| Width | 6.1 in |
| Wire Size | 18 to 6 |
| Wire Size | 18 to 6 AWG |
| Wire Type | Solid/Stranded |
