Description

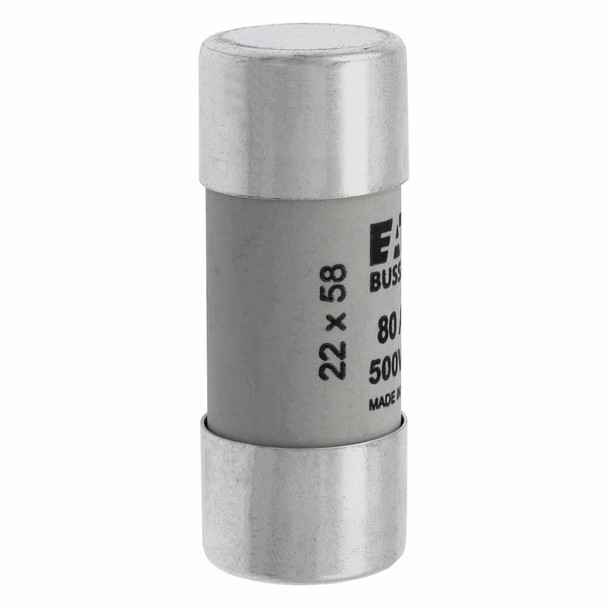

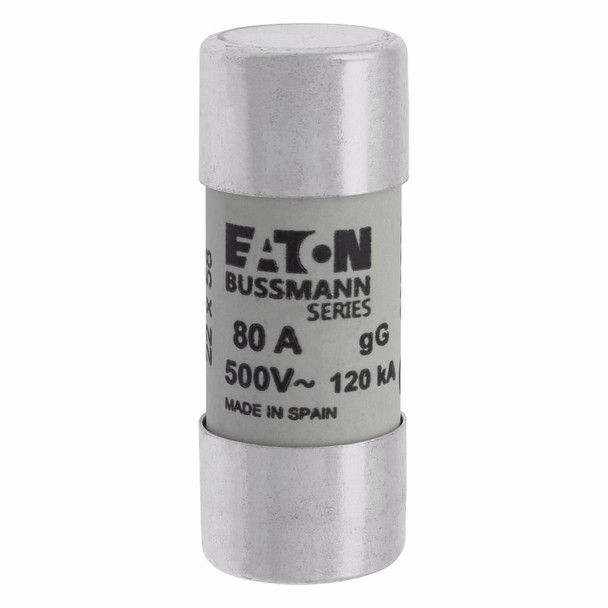

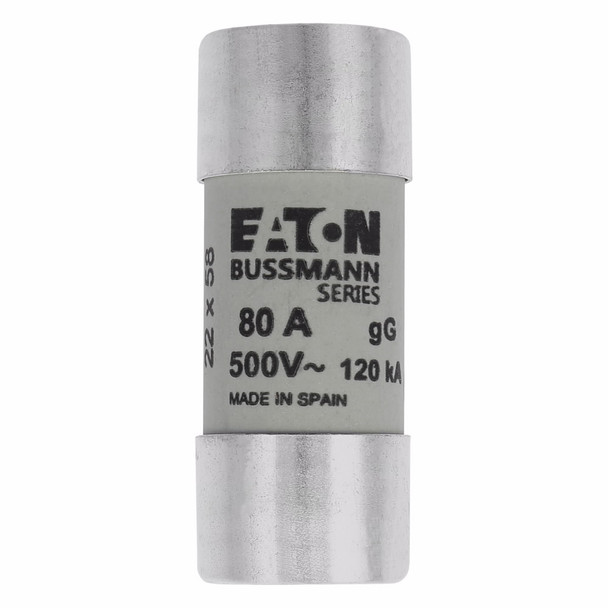

Bussmann C22G80 Cylindrical Fuse
Bussmann Fuse, Cylindrical Low Voltage Time Delay, Non-Indicating, 80 A, 500 V, 125 kA Interrupt, Class: GL/GG/C, 45 to 62 Hz Frequency, Ferrule End Terminal, Holder Mounting, Cartridge Body, Silver Plated Copper, 22 mm Dia x 58 mm L Body

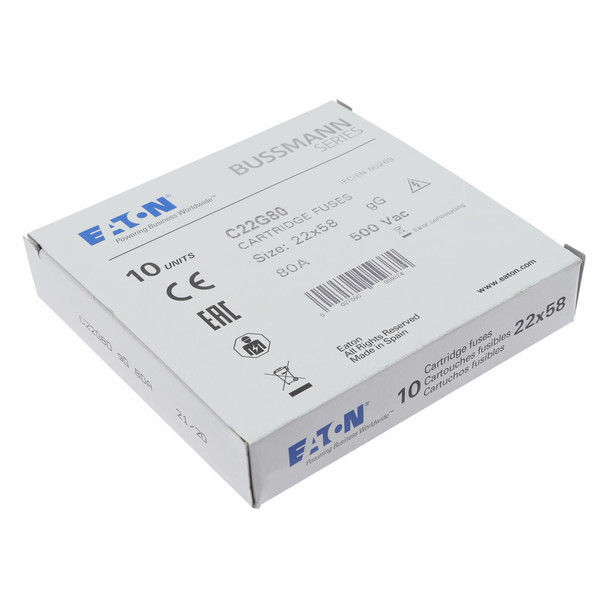

Additional Description: BUSS-C22G80 (N) CYLINDRICAL FUSE 22 x 58 80A GG 500V AC NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series low voltage 22 x 58 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 80 Amps, 120 kA Breaking capacity, class gG/gL, without indicator, compatible with a CH22 Modular fuse holder
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 80 |
| Amperage Rating | 80 A |
| Body Type | Cartridge |
| Class | GL/GG/C |
| Dimensions | 22 mm Dia x 58 mm L |
| Frequency Rating | 45 to 62 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 125 kA |
| Material | Ceramic |
| Material | Silver Plated Copper |
| Mounting type | Holder |
| Rated Breaking Capacity | 120 |
| Series | C22G |
| Suitable For Use With | CH22 Series Fuse Holder, JM70100 Series Modular Fuse Block |
| Terminal Type | Ferrule End |
| Type | Class gG/gL Low Voltage Non-Indicating |
| Type | Cylindrical Low Voltage Time Delay |
| Voltage Rating | 500 |
| Voltage Rating | 500 V |
