Description

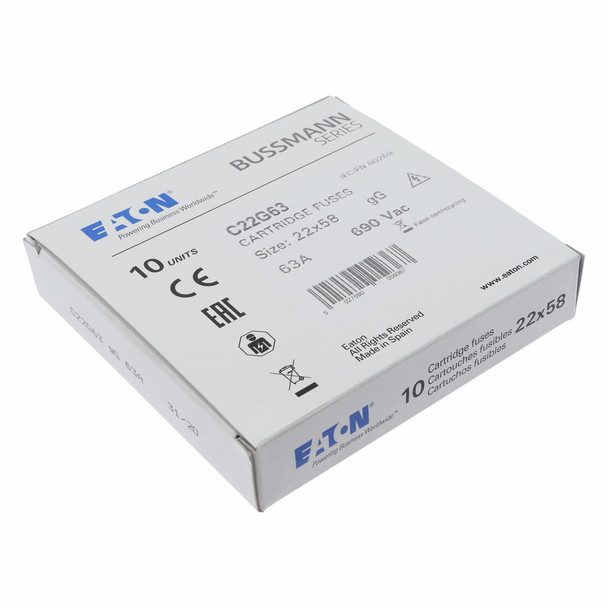

Bussmann C22G63 Cylindrical Fuse Link
Bussmann Fuse, Cylindrical Low Voltage Time Delay, Indicating/Non-Indicating: Non-Indicating, 63 A, 690 VAC, 125 A Interrupt, Class: GL/GG/C, 45 to 62 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Ceramic, 22 mm Dia x 58 mm L Body Size
Additional Description: BUSS-C22G63 CYLINDRICAL FUSE 22 x 58 63A GG 690V AC
Catalog Description: Eaton Bussmann series low voltage 22 x 58 mm cylindrical/ferrule fuse, rated at 690 Volts AC, 63 Amps, 80 kA Breaking capacity, class gG/gL, without indicator, compatible with a CH22 Modular fuse holder
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 63 |
| Amperage Rating | 63 A |
| Body Type | Cylindrical |
| Class | GL/GG/C |
| Dimensions | 22 mm Dia x 58 mm L |
| Frequency Rating | 45 to 62 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 125 A |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 80 |
| Series | C22G |
| Suitable For Use With | CH22 Series Fuse Holder, JM70100 Series Modular Fuse Block |
| Terminal Type | Ferrule End |
| Type | Class gG/gL Low Voltage Non-Indicating |
| Type | Cylindrical Low Voltage Time Delay |
| Voltage Rating | 690 |
| Voltage Rating | 690 VAC |
