Description

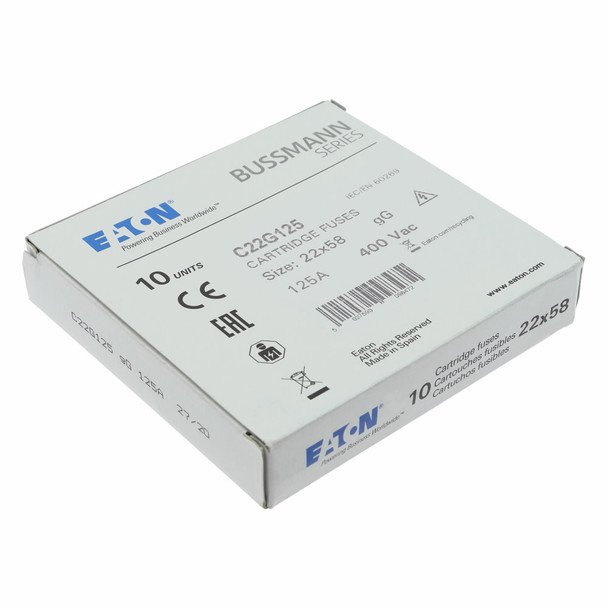

Bussmann C22G125 Cartridge Fuse
Bussmann Fuse, Cylindrical Low Voltage Time Delay, Non-Indicating, 125 A, 400 V, Class: GL/GG/C, Ferrule End Terminal, Holder Mounting, Cylindrical Body, Silver Plated Copper, 22 mm H Body
Additional Description: BUSS-C22G125 (N) CYLINDRICAL FUSE 22 x 58 125A GG 500V AC NON-CANCELABLE, NON-RETURNABLE 400V AC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series low voltage 22 x 58 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 125 Amps, 120 kA Breaking capacity, class gG/gL, without indicator, compatible with a CH22 Modular fuse holder
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 125 A |
| Body Type | Cylindrical |
| Class | gG/gL |
| Class | GL/GG/C |
| Indicating/Non-Indicating | Non-Indicating |
| Material | Ceramic |
| Material | Silver Plated Copper |
| Mounting type | Holder |
| Terminal Type | Ferrule End |
| Type | Cylindrical Low Voltage Time Delay |
| Type | Time Delay |
| Voltage Rating | 400 |
| Voltage Rating | 400 V |
