Description

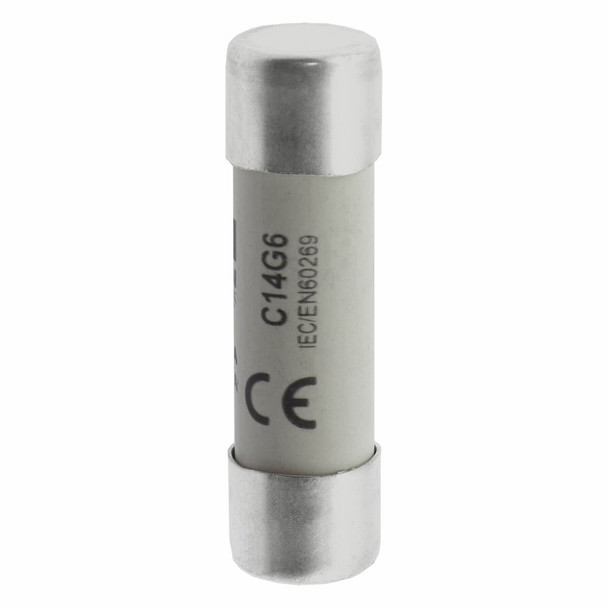

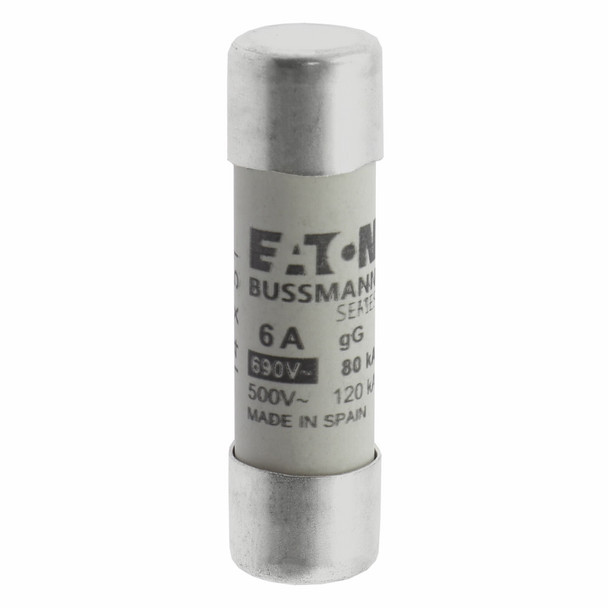

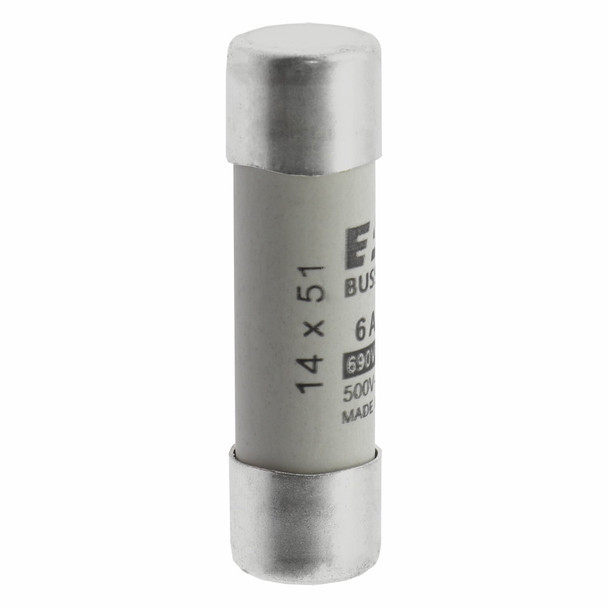

Bussmann C14G6 Cylindrical Fuse Link
Bussmann Fuse, Low Voltage Time Delay, Series: C14G, Indicating/Non-Indicating: Non-Indicating, 6 A, 690 VAC, 50 A Interrupt, Class: GL/GG/C, 45 to 62 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Ceramic
Additional Description: BUSS-C14G6 (N) CYLINDRICAL FUSE 14 x 51 6A GG 690V AC NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 690 Volts AC, 6 Amps, 80 kA Breaking capacity, class gG/gL, without indicator, compatible with a CH14 Modular fuse holder
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 6 |
| Amperage Rating | 6 A |
| Body Type | Cylindrical |
| Class | GL/GG/C |
| Dimensions | 14 mm Dia x 51 mm L |
| Frequency Rating | 45 to 62 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 A |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 80 |
| Series | C14G |
| Suitable For Use With | CH14 Series Fuse Holder |
| Terminal Type | Ferrule End |
| Type | Class gG/gL Low Voltage Non-Indicating |
| Type | Low Voltage Time Delay |
| Voltage Rating | 690 |
| Voltage Rating | 690 VAC |
