Description

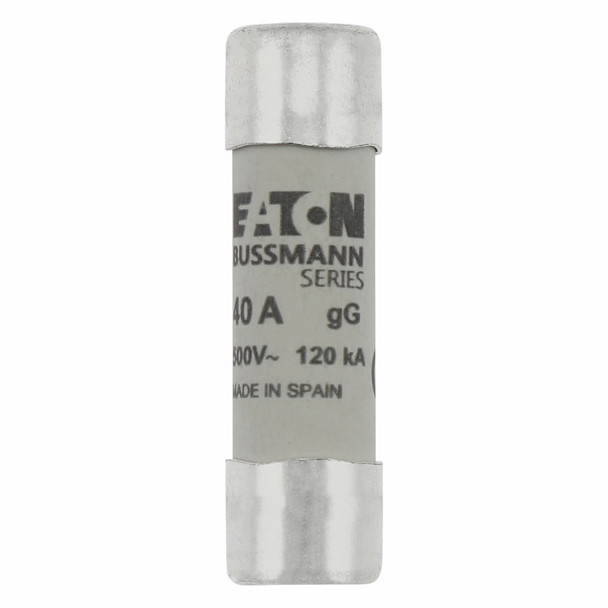

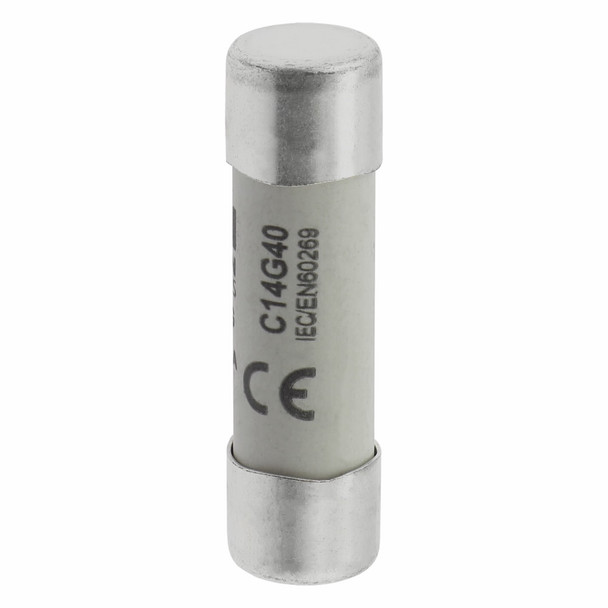

Bussmann C14G40 Cylindrical Fuse Link
Bussmann Fuse, Cylindrical Low Voltage Time Delay, Indicating/Non-Indicating: Non-Indicating, 40 A, 500 VAC, 50 A Interrupt, Class: GL/GG/C, 45 to 62 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Silver Plated Copper
Additional Description: BUSS-C14G40 (N) CYLINDRICAL FUSE 14 x 51 40A GG 500V AC NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 40 Amps, 120 kA Breaking capacity, class gG/gL, without indicator, compatible with a CH14 Modular fuse holder
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 40 |
| Amperage Rating | 40 A |
| Body Type | Cylindrical |
| Class | gG/gL |
| Class | GL/GG/C |
| Dimensions | 14 mm Dia x 51 mm L |
| Frequency Rating | 45 to 62 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 A |
| Material | Ceramic |
| Material | Silver Plated Copper |
| Mounting type | CH Modular Fuse Holder |
| Mounting type | Holder |
| Rated Breaking Capacity | 120 |
| Series | C14G |
| Suitable For Use With | CH14 Series Fuse Holder |
| Terminal Type | Ferrule End |
| Type | Class gG/gL Low Voltage Non-Indicating |
| Type | Cylindrical Low Voltage |
| Type | Cylindrical Low Voltage Time Delay |
| Voltage Rating | 500 VAC |
| Voltage Rating | 500/690 |
| Voltage Rating | 690 |
