Description

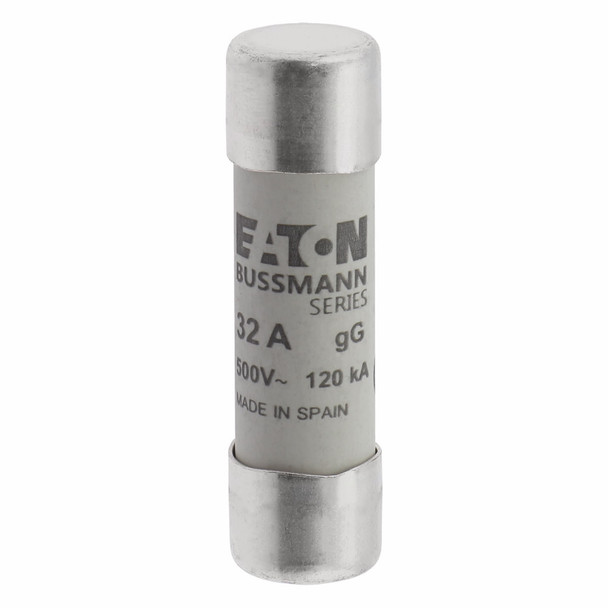

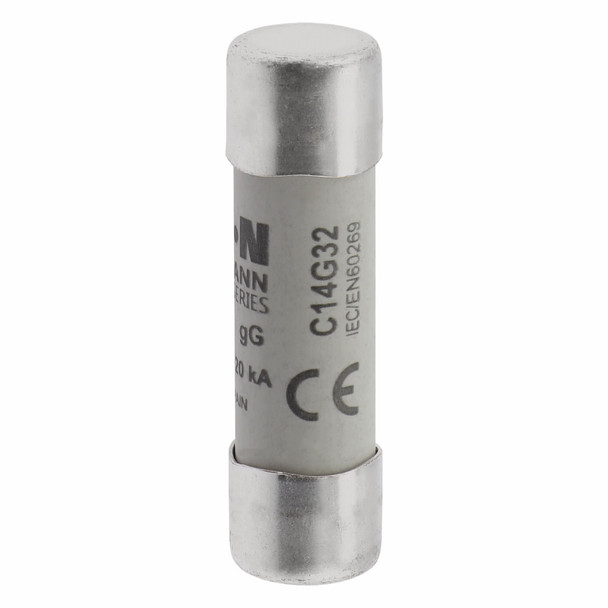

Bussmann C14G32
Bussmann Fuse, Cylindrical Low Voltage Time Delay, Non-Indicating, 32 A, 500 V, 50 A Interrupt, Class: C gL/gG, 45 to 62 Hz Frequency, Ferrule End Terminal, Holder Mounting, Cylindrical Body, Silver Plated Copper
Additional Description: BUSS-C14G32 CYLINDRICAL FUSE 14 x 51 32A GG 500V AC
Catalog Description: Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 32 Amps, 120 kA Breaking capacity, class gG/gL, without indicator, compatible with a CH14 Modular fuse holder
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 32 A |
| Body Type | Cylindrical |
| Class | GL/GG/C |
| Frequency Rating | 45 to 62 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 A |
| Material | Silver Plated Copper |
| Mounting type | Holder |
| Terminal Type | Ferrule End |
| Type | Cylindrical Low Voltage Time Delay |
| Voltage Rating | 500 VAC |
