Description

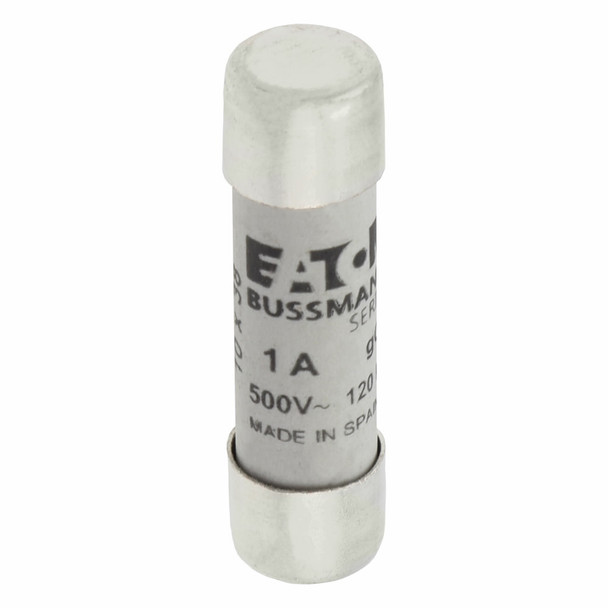

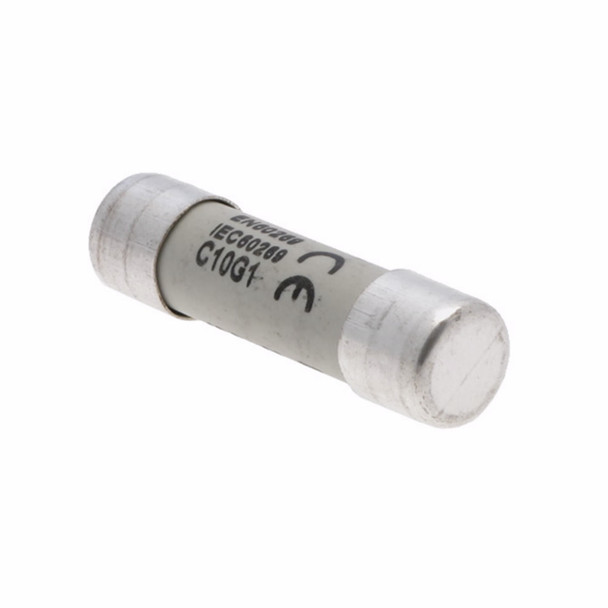

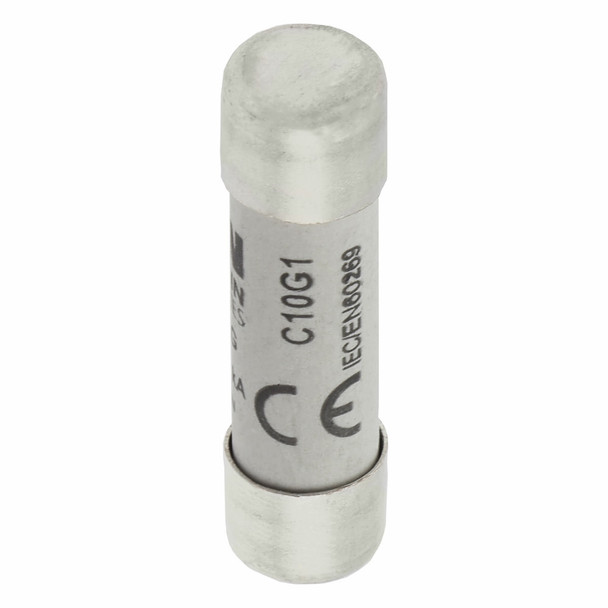

Bussmann C10G1 Industrial Fuse
Bussmann Fuse, Cylindrical Low Voltage, Indicating/Non-Indicating: Non-Indicating, 1 A, 500 VAC, 120 kA Interrupt, Class: GL/GG/C, Ferrule End Terminal, Holder Mount, Cylindrical Body, Ceramic, 10 mm Dia x 38 mm L Body Size
Additional Description: BUSS-C10G1 CYLINDRICAL FUSE 10 x 38 1A GG 500V AC
Catalog Description: Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 1 Amps, 120 kA Breaking capacity, class gG/gL, without indicator, compatible with a CHM Modular fuse holder
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 1 |
| Amperage Rating | 1 A |
| Body Type | Cylindrical |
| Class | gG/gL |
| Class | GL/GG/C |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 120 |
| Interrupt Rating | 120 kA |
| Material | Ceramic |
| Mounting type | Holder |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Cylindrical Low Voltage |
| Type | Low Voltage |
| Voltage Rating | 500 |
| Voltage Rating | 500 VAC |
