Description

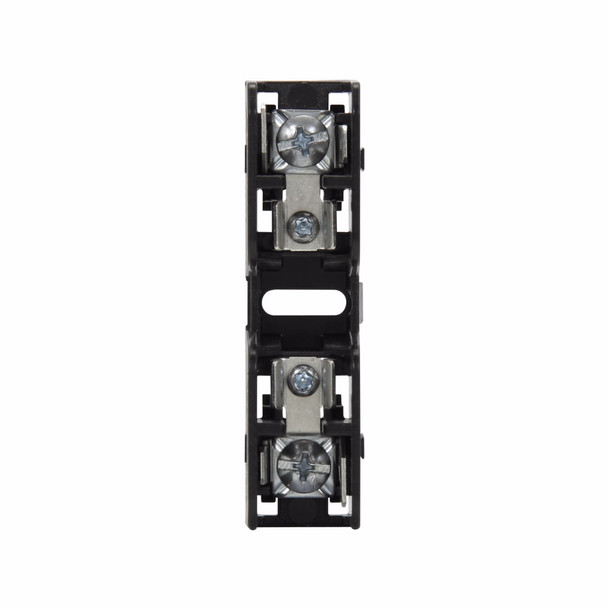

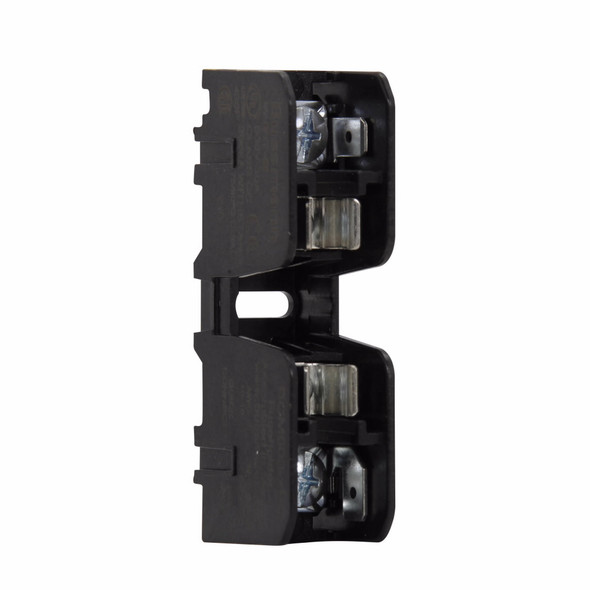

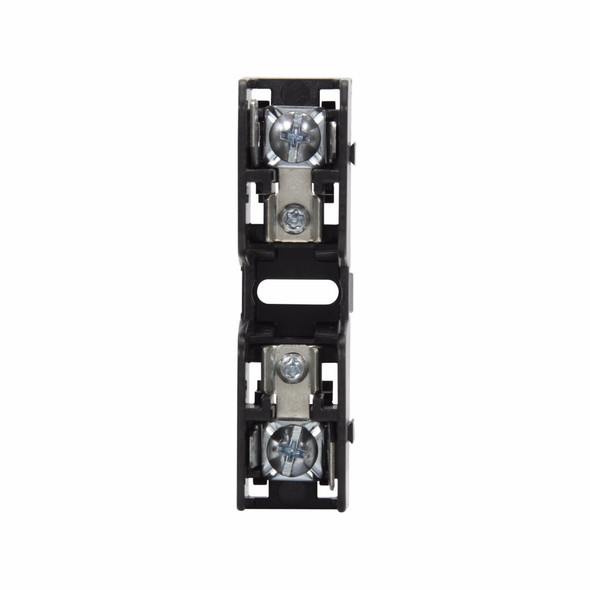

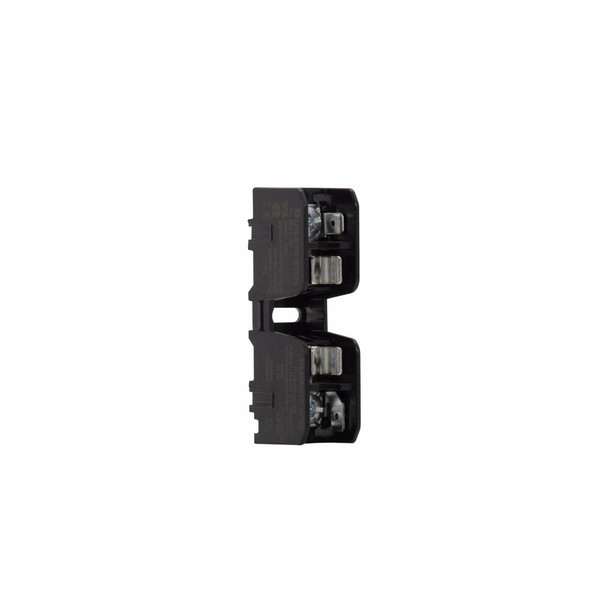

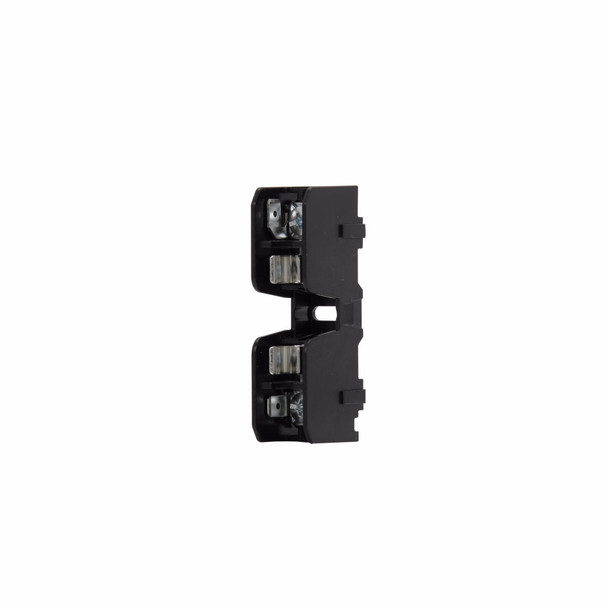

Bussmann BMM603-1PQ Midget Fuse Block
Bussmann Fuse Block, Modular, Series: BMM, 600 V, 30 A, 1 Pole, Class: CC/Midget, 1/4 in Quick-Connect/Pressure Plate, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses, Thermoplastic, 3 in L x 0.8 in W x 1.3 in H
Additional Description: BUSS-BMM603-1PQ MIDGET FUSE BLOCK W/ PP & QC 1 POLE POLE
Catalog Description: Eaton Bussmann series BMM fuse blocks, 30 A, Single-pole, Pressure plate/quick connect, 200 kAIC, 600 V
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Class | CC |
| Class | CC/Midget |
| Connection type | 1/4 in Quick Connect/Pressure Plate |
| Connection type | 1/4 in Quick-Connect/Pressure Plate |
| Dimensions | 3 in L x 0.8 in W x 1.3 in H |
| Fuse Diameter | 13/32 |
| Fuse Diameter | 13/32 in |
| Fuse Length | 1-1/2 |
| Fuse Length | 1-1/2 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Poles | 1 |
| Series | BMM |
| Suitable For Use With | BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses |
| Suitable For Use With | Fast Acting 250 VAC BAF, Fast Acting 600 VAC KTK, Fast Acting 600 VAC/VDC KLM, Time Delay 250 VAC FNM, Time Delay 500 VAC FNQ, Class aM and gG/gL IEC Industrial Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 18 to 10 |
| Wire Size | 18 to 10 AWG |
